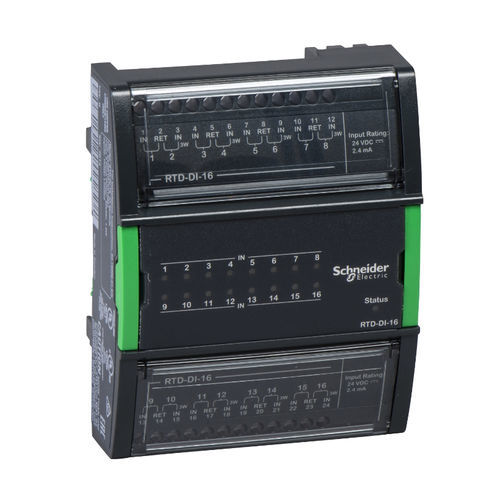

The SpaceLogic RTD-DI-16 is an RTD/digital input, 16 channel I/O expansion module for the SpaceLogic AS-P Server. The inputs can be configured to read different types of inputs: RTD temperature, RTD resistive, digital, counter and resistive. The digital inputs can be used for sensing multiple dry contact inputs in applications, such as equipment status or alarm point monitoring. The RTD inputs are ideal for temperature points in a building control system. The RTD-DI-16 I/O expansion module features 16 RTD/digital inputs. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. This I/O module requires a SpaceLogic Central I/O Terminal Base (SXWTBIOW110001).

Parameter Name	Parameter Value
Signal type	digital
Applications	for RTD
Number of inputs/outputs	16-channel
Mounting	DIN rail wall-mount
