About

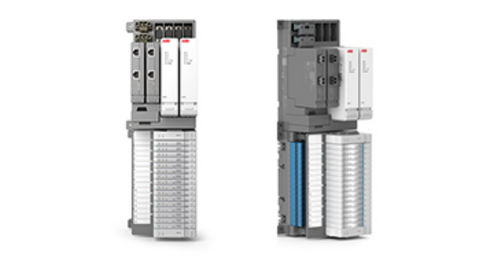

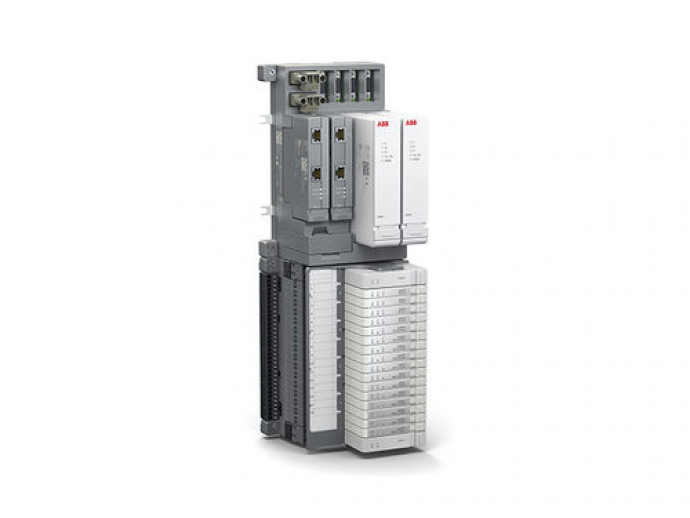

Ethernet Networked, single channel, late binding I/O solution for System 800xA

Select I/O is a Ethernet based single channel I/O solution for ABB Ability™ System 800xA that offers full redundancy down to the Signal Conditioning Module. Each signal coming from the field is conditioned individually with the Signal Conditioning Module (SCM) for both process and safety applications.

A robust field friendly design provides features such as:

Individual Signal Conditioning Modules (SCMs) available for process, safety (SIL3) and intrinsically safe applications
Field disconnect mode (connected to system, but isolated from the field)
Electronic current limitation and galvanically isolated (per channel)
Line monitoring for all I/O types
-40 °C to +70 °C (-40 °F-158 °F) temperature range
Up to 192 SCM’s per I/O cluster
Support for HART pass-through and secondary variable access
Single channel and multi-channel (S800) I/O in the same system
Support for digital marshalling (Visit this page for more information)

Application

Select I/O is suitable for many types of projects, especially for:

Large capital intensive (complex) project with high risk of late changes and schedule delays
Projects with small counts of distributed I/O (for example well pads)
Integrated control and safety applications
Fast track projects with the need for flexibility



PARAMETERS

Parameter Name Parameter Value
Signal type
digital
Bus
Ethernet
Type
  • distributed
  • safety
Mounting
integrated
Other characteristics
  • universal
  • robust
  • intrinsically safe
