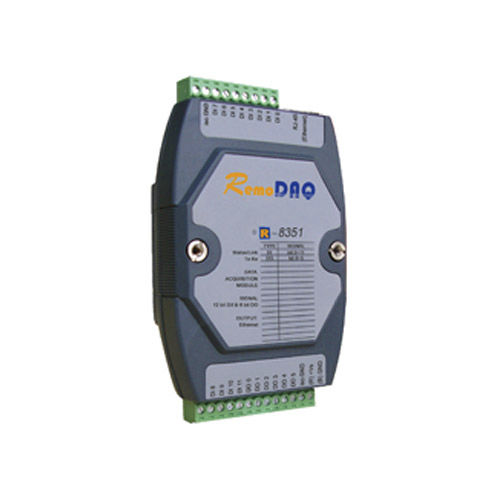

16-channel Isolated Digital I/O Module with Timer

Main Features

- Channels: 16
- I/O Type: 12DI/2DO/2 Timer
- Digital Input:
Dry Contact:
Logic Level 0: GND
Logic Level 1: Open
Wet Contact:
Logic Level 0: +3V (max)
Logic Level 1: +10V~30V
- Digital Output:
Open Collector 30V (200mA Max Load)
- Optic Isolation: 2000VRMS
- Timer:Max Timing: 4,294,967,285 (320bit)
Input Frequency: 0.3~1000Hz max. (Frequency Mode)
5000Hz max. ( Timing Mode)
Isolation Voltage: 2000VRMS
Mode: Timers, frequency
- Power Consumption: 2W (typically)

Parameter Name	Parameter Value
Signal type	digital
Bus	Ethernet
Number of inputs/outputs	16-channel
Mounting	DIN rail
