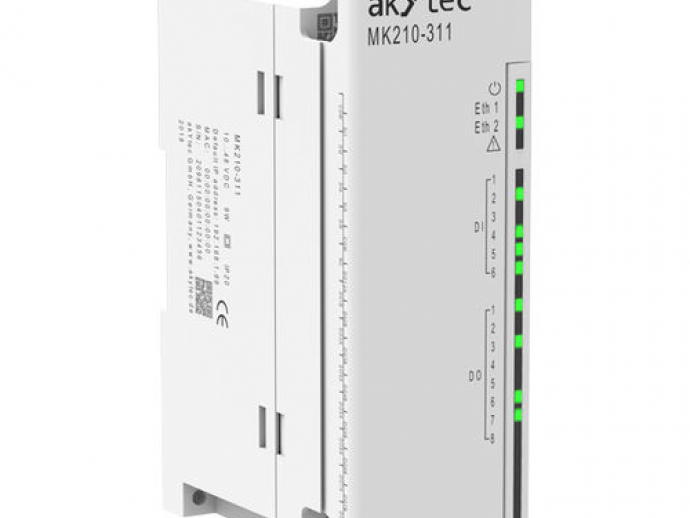

The digital I/O-Module MK210 has 6 or 12 digital inputs which are implemented as switch contacts and NPN. In addition, there are also 8 or 4 digital outputs (relay) available. To communicate the input data to a controller, an Ethernet port and Modbus TCP are at your disposal. The module requires 24V DC input power and can operate in the temperature range between -40 and +55 °C.

The digital I/O-Module MK210 has 6 or 12 digital inputs which are implemented as switch contacts and NPN. In addition, there are also 8 or 4 digital outputs (relay) available. To communicate the input data to a controller, an Ethernet port and Modbus TCP are at your disposal. The module requires 24V DC input power and can operate in the temperature range between -40 and +55 °C.

Power supply not required for the digital inputs
Load break alarm
2 bypass-capable Ethernet ports
Support for daisy-chain wiring
Support for Modbus TCP, MQTT, SNMP, SNTP
Simultaneous communication with up to 4 TCP clients
LEDs for network status diagnostics
Support for data logging
Built-in real-time clock
Free of charge configurator
Synchronous configuration update of two or more selected modules

The daisy-chain connectivity and support for Ethernet auto-bypass prevent accidental loss of communication if one of the modules unexpectedly shuts down

Parameter Name	Parameter Value
Signal type	digital
Bus	Ethernet, Modbus TCP, USB
Type	network
Applications	temperature
Number of inputs/outputs	4 digital outputs
Other characteristics	relay
