I/O module IO20
with bus interface
Profile IO20:

IO module for evaluating digital sensors and controlling actuators

Output of system information of ETC5000

SIKONETZ5 interface

8 digital inputs

8 digital outputs
Easy mounting (top-hat rail)

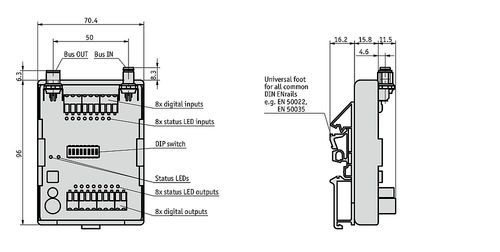

Mechanical data
Feature - Technical data - Additional information
Housing - plastic -
Housing design - snap module housing - top hat rail mounting
Weight - '0.1 kg -
Electrical data - -
Feature - Technical data - Additional information
Operating voltage - 24 V DC ±20 % - via bus plug connector
Current consumption - '20 mA - without load
Digital inputs - 8x opto-coupler inputs, PNP - 24 V, threshold '12 V - LED green
digital outputs - 8x high side driver, PNP - 230 V, 2350 mA per channel, short-circuit proof, reverse polarity protected the total of ail outputs must not exceed 2 A
Interface - RS485 - SIKONETZ5
Address - bus addresses 0 ... 31 can be set via DIP switches - factory setting: address 1
Baud rate - can be set via dip switch - factory setting: 57.6 kBd
Type of connection - 2x M8 plug connectors (A-coded) - 4-pole, 1x socket, 1x pin
- 2x spring terminal - 9-pole, 10-pole, 0.2 ... 0.75 mm2
Ambient conditions - -
Feature - Technical data - Additional information
Ambient température - 0 ... 60 5C -
Storage température - -30 ... 85 SC -
Relative humidity - - condensation inadmissible
Protection category - IPOO - EN 60529

Parameter Name	Parameter Value
Signal type	digital
Bus	RS485
Number of inputs/outputs	8-I/O
Mounting	DIP
