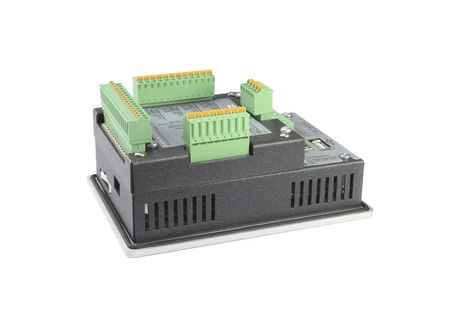

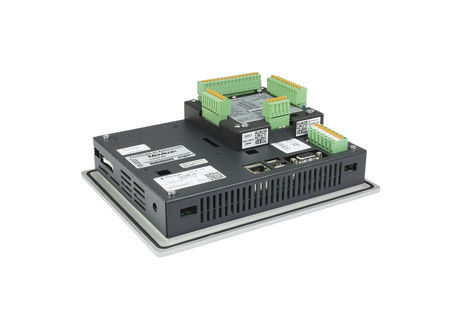

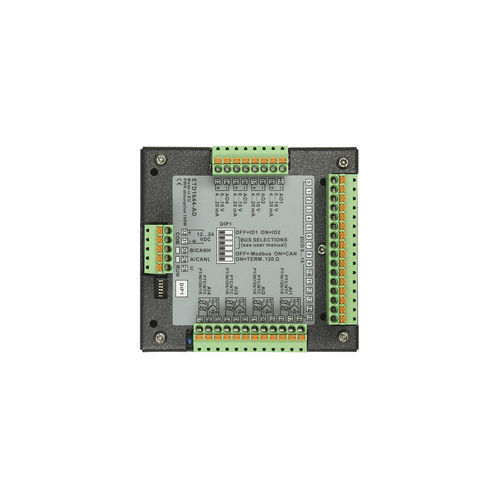

ETD1644 is an I/O expansion board with plug-in connection to Pixsys HMI, allowing acquisition and control of analogue/digital I/O on the HMI via RS485/Modbus RTU or high-speed bus CANopen. Device is included into Pixsys devices catalogue within development environment LogicLab for quick and straightforward integration into programs.

I/O evailability includes 16 digital lines programmable as inputs and/or outputs, 4 universal analogue inputs and 4 analogue outputs mA/Volt.

It is also possible to acquire up to 4 encoders mono/bidirectional.

Parameter Name	Parameter Value
Signal type	digital
Bus	Modbus RTU, RS485, CANopen
Number of inputs/outputs	16 digital inputs 4 analog inputs 16 digital outputs
Other characteristics	programmable universal
