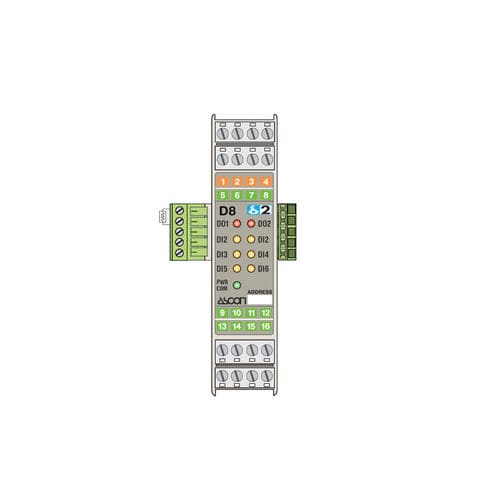

Digital I/O module 6 inputs and 2 outputs

-Installation on the machine or within a panel
-It can be used individually or interconnected, with internal bus for power supply and RS 485 – Modbus serial communication
I/O module for data acquisition systems (DAS), PC-based control systems, supervision systems, analog I / O for PLC etc.
Special functions for analog and digital inputs
Configurable from PC
It can be interfaced via DX module to Profibus and CAN networks.

FUNCTION -
Acquisitor

DIMENSIONS -
DIN rail mounting

DISPLAY -
No display

POWER SUPPLY -
24 Vac/Vdc

NUMBER OF OUTPUTS -
2

OUTPUTS -
Relay

DIGITAL INPUTS -
7

EXTRACTABILITY -
By the front

CERTIFICATIONS -
CE, UL

Parameter Name	Parameter Value
Signal type	digital
Bus	Modbus RTU, Modbus, PROFIBUS, RS485
Applications	PLC
Number of inputs/outputs	with relay output 2-O 6-I
Mounting	PC-based
Other characteristics	configurable compact slave
