About

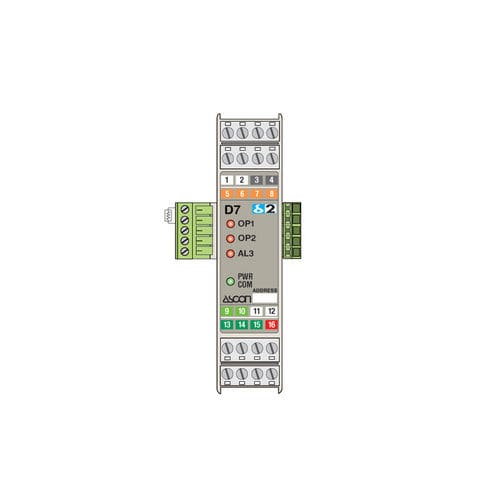

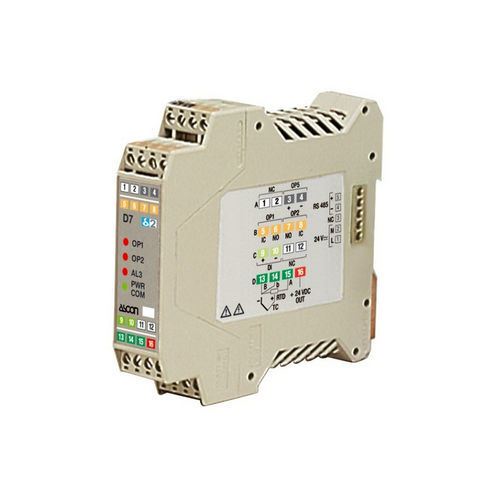

Acquisition, isolator, transmitter with alarms
-Installation on the machine or within a panel
-It can be used individually or interconnected, with internal bus for power supply and RS 485 – Modbus serial communication
-I/O module for data acquisition systems (DAS), PC-based control systems, supervision systems, analog I / O for PLC etc.
-Universal analog transmitter with alarms
-Special functions for analog and digital inputs
-Configurable from PC Can be interfaced via DX module to Profibus and CAN networks.
FUNCTION -
Transmitter, Acquisitor
DIMENSIONS -
DIN rail mounting
POWER SUPPLY -
24 Vac/Vdc
INPUTS -
0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, 1 digital, Delta T Pt100, Pt100, Thermocouple, Universal
NUMBER OF OUTPUTS -
1, 2, 3
OUTPUTS -
0/1… 5 V, 0/4… 20 mA, Relay
DIGITAL INPUTS -
1
RETRANSMISSION OUTPUT -
0/1… 5 V, 0/4… 20 mA
INTERFACE -
RS 485 Modbus Slave
SPECIAL FUNCTIONS -
Transmitter power supply, User calibration
CONTROL -
ON/OFF, ON/OFF and PID single or double action
EXTRACTABILITY -
By the front
CERTIFICATIONS -
CE, UL
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Signal type |
digital, analog
|
| Bus |
Modbus, CAN, PROFIBUS, RS485
|
| Applications |
PLC
|
| Number of inputs/outputs |
4 digital outputs
|
| Mounting |
DIN rail
|
| Other characteristics |
|
