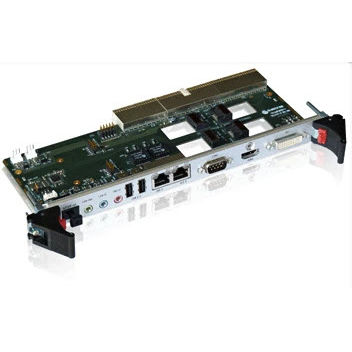

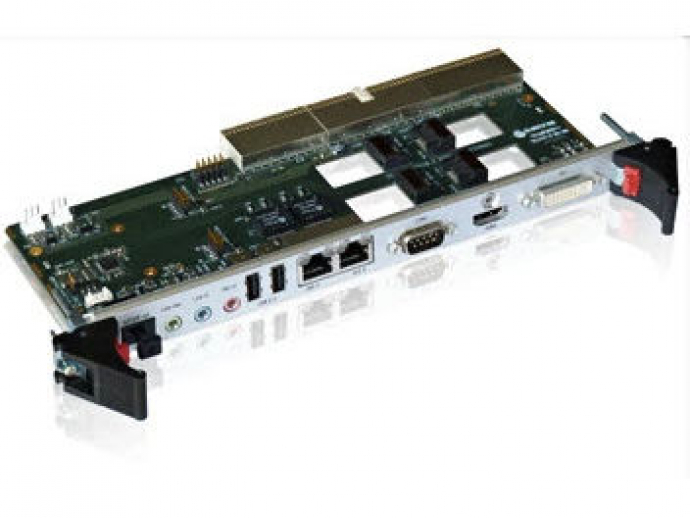

4HP REAR I/O INTERFACE FOR A 6U COMPACTPCI CP6002, CP6003, CP6004, CP6005, CP6006 CARD
SPECIFICATIONS
Single slot (4HP)
Header connectors for 4xSATA, 2xUSB2.0 Flash Disk, 1xRS232
USB Flash Support
Rear panel connectors for 2x Ethernet (not B216), DVI, HDMI, 2x USB, HD Audio, RS232
Software Packages for Windows & Linux
The CP-RIO6-B is a 4HP Rear I/O interface for a CP6002, CP6003, CP6004, CP6005, CP6006 Compact PCI card complying to Kontron\'s proprietary RTM pinout. This RTM unit will provide USB, Ethernet, serial,DVI, HDMI, USB Flash, and SATA connection.
The CP-RIO6-B216 version is compliant to PICMG2.16 and has therefore the two rear IO Gigabit Ethernet channels routed to the backplane.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Signal type |
digital
|
| Bus |
Ethernet, gigabit Ethernet, USB
|
| Bus standard |
cPCI
|
| Type |
RTM
|
| Size |
6U
|
