4HP REAR I/O INTERFACE FOR A 6U COMPACTPCI CP6002, CP6003, CP6004, CP6005, CP6006 & CP6016 CARD
SPECIFICATIONS
• Single slot (4HP)
• Header connectors for 4xSATA, 2xUSB2.0 Flash Disk, 1xRS232
• USB Flash Support
• Rear panel connectors for 2x Ethernet (not A216), VGA, 2x USB, HD Audio, RS232
• Software Packages for Windows & Linux

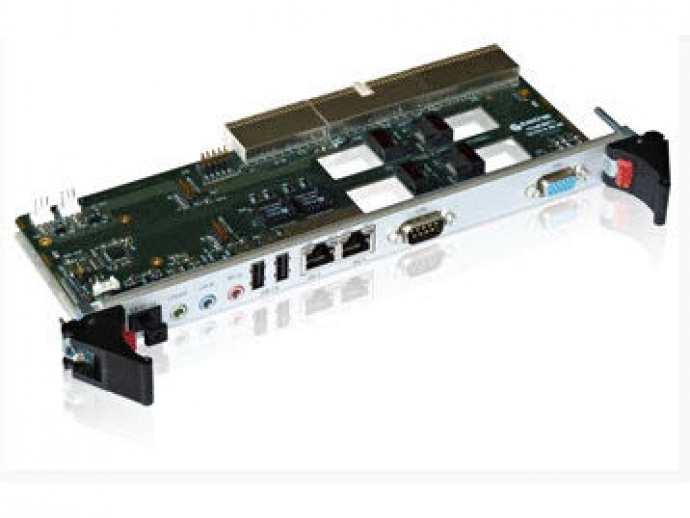

The CP-RIO6-A is a 4HP Rear I/O interface for a CP6002, CP6003, CP6004, CP6005, CP6006 & CP6016 Compact PCI card complying to Kontron\'s proprietary RTM pinout. This RTM unit will provide USB, Ethernet, serial,VGA, USB Flash, and SATA connection.
The CP-RIO6-A216 version is compliant to PICMG2.16 and has therefore the two rear IO Gigabit Ethernet channels routed to the backplane.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Signal type |
digital
|
| Bus |
Ethernet, gigabit Ethernet, USB, serial
|
| Bus standard |
cPCI
|
| Type |
RTM
|
| Size |
6U
|
