Together with the central computers, the EN 50155 qualified input / output modules make it possible to build complete train control control (TCMS) architectures. These acquisition and control modules are based on a generic platform: the “Basic Remote”. Input Output “module (” BRIO “) Generic BRIO complies with the SIL0 level of EN 50126, EN 50128, EN 50129. The range is supplemented by specific modules:

-BRIO SIL2 : SIL2 Input/output Modules
-BRIO SSPC : Solid State Power Controller
-BRIO CEE : Energy Exchange Controller

CENTRAL UNIT

-Processor : STM32 32 bits/200Mhz
-Operating system : Free RTOS
-I/O coprocessor : FPGA Xilinx
-Memories : SDRAM 8Mo, NAND, Crypto.

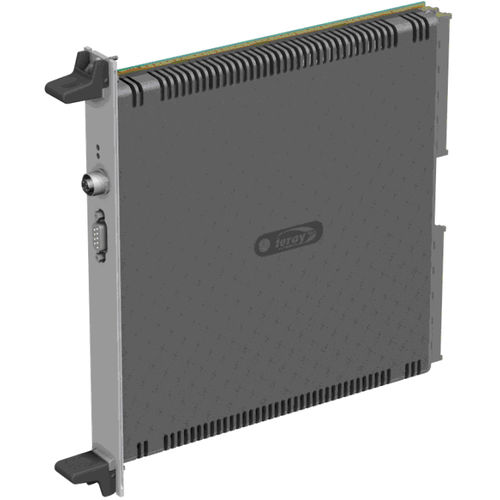

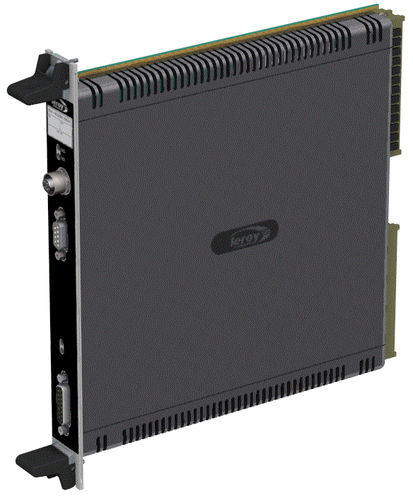

MOUNTING AND INSTALLATION

-Aluminium product with protective cover made of composite material
-Dimensions : W x H x D = 30 x 262 x 265 mm
-Mounting :
-6U x 6HP rack mounting
-Remote stand-alone mounting with a side support

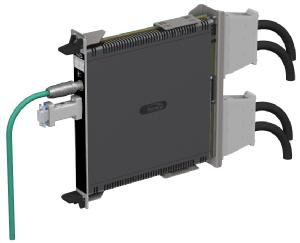

-Wiring of inputs/outputs and power supply on the rear panel :
-2 connectors of type DIN41612 F48 male class 1
-Wiring network on the front panel :
-Ethernet : M12 code D female
-Serial links : Subd 9 points

POWER SUPPLY

-Full range power supply 24Vdc to 110Vdc
-Protection against polarity reversal and under voltage
-Power consumption : <20W

CONFIGURABLE MODULE

-BRIO can be used as a configurable remote module
-Data mapping is fixed
-Possibility to trigger the download of operating parameters from a central database after recognition of an identification key connected to the SubD RS232
-Operation and maintenance by Web Services

Parameter Name	Parameter Value
Signal type	digital
Bus	Ethernet, Modbus RTU, CANopen, CAN, RS-485, RS-232
Bus standard	FPGA
Type	remote network
Applications	for railway vehicles
Mounting	rack-mount
Size	6U
Other characteristics	configurable IP
