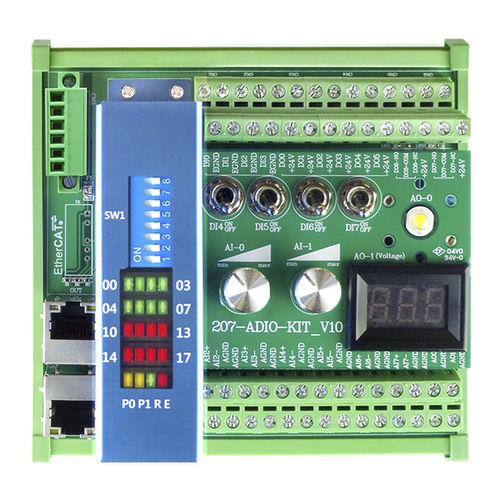

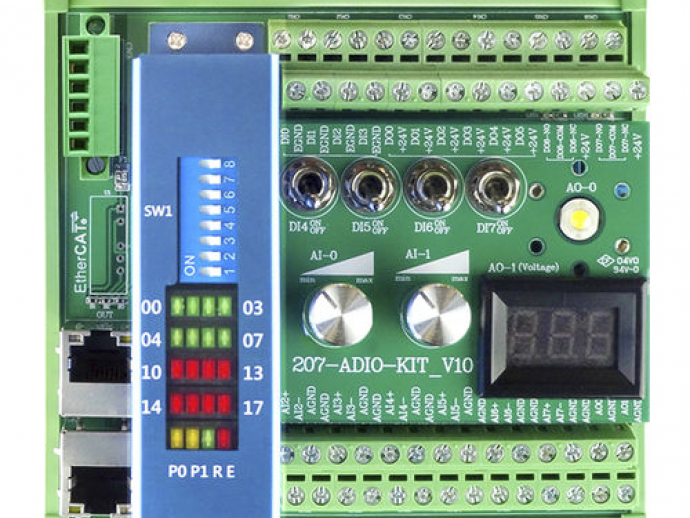

The 207-ADIO-KIT is an 8-channel Analog Input (AI), 2-channel Analog Output (AO), 8-channel Digital Input (DI) and 8-channel Digital Output (DO) slave module with the pluggable terminal block. With EtherCAT® control, it will lead to fast ethernet and full-duplex serial interface. The transmission speed is up to 100 Mbps. The digital slave can connect different slaves serially with cable CAT5 UTP/STP ethernet cable. 207-ADIO-KIT also supports TwinCAT with ESI File, and Object Dictionary (OD) of PDO and SDO.

207-ADIO-KIT has passed RSI-ECAT Certificate. Click me for English version test report. Click me for Japanese version test report.

Features
● 8 Ch. Analog Input / 2 Ch. Analog Output slave module
● 8 Ch. Digital Input / 8 Ch, Digital Output slave module
● Max. 100Mbps transfer rate
● Easy installation with RJ45 phone jack and LED diagnostic
● Liable to do Al/O & Dl/O test with toggle and rotary switch
● DIN rail mounting (L-122 x W-124 x H-104 mm)

EtherCAT®
Serial interfaceFast Ethernet, Full-Duplex
Distributed Clock1ms
Cable typeCAT5 UTP/STP Ethernet cable
Surge protection10KV
Transmission speed100 Mbps
I/O isolation voltage3750Vrms

AD Converter
Effective resolution16 bits
Conversion time~ 125µs
Input rangeSingle End: ±10/±5/±2.5/±1.25V;
Differential: ±10/±5/±2.5/±1.25V
Input current0~20mA
Number of inputs8-channel AI

DA Converter
Effective resolution12 bits
Output range±10V
Operation modeRamp and Noise, Single Value, Single Coupled Value, Pattern
Number of outputs2-channel AO

DI/O Control
Input typesNPN
Input impedance5.6KΩ/0.5W
Input current±5mA(Max)
Output typeNPN open collector Darlington transistors

Parameter Name	Parameter Value
Signal type	digital
Bus	Ethernet, serial, EtherCAT
Type	distributed
Number of inputs/outputs	8 digital inputs 8 analog inputs 2 analog outputs 8 digital outputs
Mounting	DIN rail
Other characteristics	slave
