Digital I/O module

Digital I/O module

Digital I/O module

About

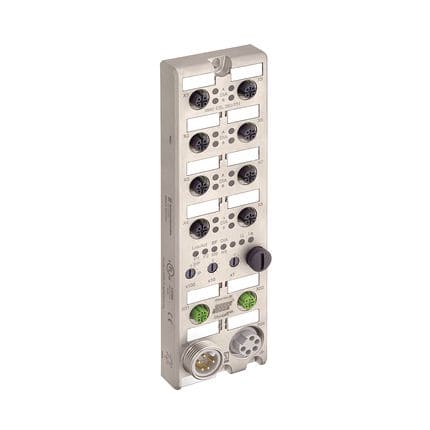

The family of LioN-Power multiprotocol modules offer highly customizable features to deliver fieldbus-independent automation for the leading industrial Ethernet protocols.

Replace modules faster by using the universal channels as digital input or digital output, without any configuration. This flexibility lowers configuration time

Streamline your field devices through the industry’s first multiprotocol I/O device for PROFINET, EtherNet/IP and EtherCAT protocols

Connect more field devices in a daisy-chain with the industry’s only I/O module powerful enough to support 2 x 16 amps

IO function available in 16DIO (universal), 16DI, 16DO and 8DI 8DO
Power supply connections – M12 L-coded or 7/8"
Flexible, independent bitmapping via Flex-Bit Technology
PROFINET V2.3 (CC-C), Netload Class III, FSU, MRP
EtherNet/IP according to CIP Edition V3.11, EIP adaption of CIP V1.12, DLR, Quick Connect
EtherCAT I/O according to ETG.1000 V1.2, auto-increment and fixed addressing, CoE, EoE, FoE
IP-rated for IP65, IP67 and up to IP69K



PARAMETERS

Parameter Name Parameter Value
Signal type
digital
Bus
Ethernet, ProfiNet, EtherCAT
Applications
automation
Number of inputs/outputs
  • 8 digital inputs
  • 16 digital inputs
  • 16 digital outputs
Other characteristics
  • IP65
  • IP67
  • IP69K
  • universal
  • flexible
