Panel I/O – Processor and Multifunction I/O Board with 16 A/D, 2 D/A, 20 DIO, One I2C and One RS-232/422/485 Port

Features

Compact board level size (4.5" x 8.5" x 0.75")
Compatible with over 85+ UEI I/O boards
Small enough to be mounted behind an instrument panel
Standard Ethernet Interface
IEEE-1588/PTP and 1PPS synchronization
Rugged (5g Vibe, 100g Shock, -40°C - +85 °C)
MTBF > 140,000 hours (>15 years)
Complete Windows, Linux, and RTOS software support
Fully compatible with UEI DNA/DNR software (same API)
PC-based or standalone/embedded controller operation
Hex switches allow selection of IP address without a PC
UEISIM deployment is available. Please contact sales@ueidaq.com.

I/O Highlights

16 SE / 8 Differential 18-bit analog input channels
±80 to ± 0.156 V analog input ranges
Dual 16-bit ±10 V or 0-20 mA analog output channels
16 0-55 VDC digital I/O bits
500 mA DOuts with 16-bit PWM resolution
Dual 32-bit counters and 4 logic level DIO
Up to 2 kHz update rates
Trigger input and output
RS-232/422/485 and I2C ports
350 Vrms Isolation

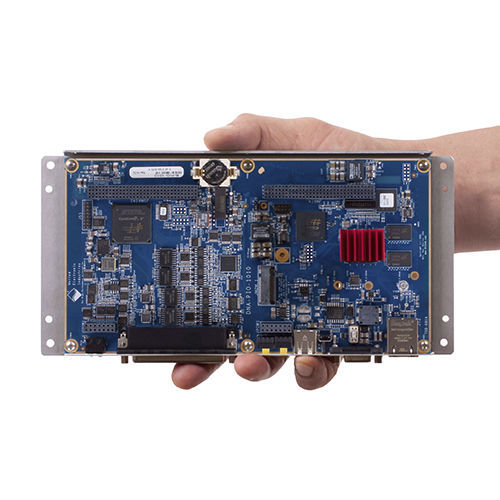

The UEI-PIO-1010 is a fully integrated I/O system. At 4.5” x 8.5” x .75”, it is small enough to easily fit between an instrument panel and the bulkhead of a simulator/trainer, or in a huge variety of other tight spaces. With over 40 I/O channels, the combination of small size and large I/O count makes it an ideal solution for a wide variety of applications. The 15+ year MTBF combined with the unit’s rugged construction means it’s ideally suited for installation in locations without easy access.

Parameter Name	Parameter Value
Signal type	digital, analog
Bus	Ethernet, RS-232
Mounting	embedded PC-based panel fully integrated
Other characteristics	compact rugged
