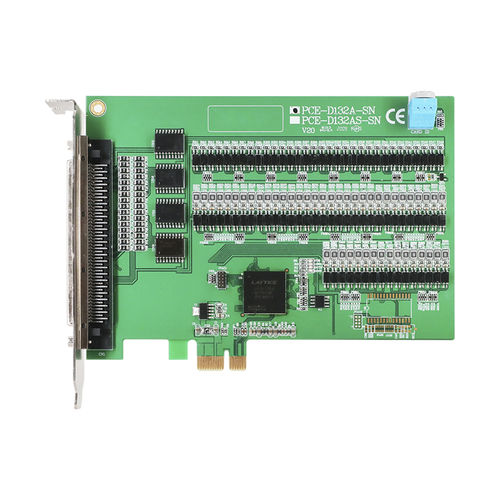

PCE-D132A-SN is a 48/32-Ch. high-density isolated digital input/output card. It is an advanced-performance data acquisition card based on PCI Express bus architecture. It is suitable for most industrial applications such as in test equipment, instrumentation, industrial automation, lab automation, and process control. The card features a PCI Express x1 lane which can be used in any available x1, x4, x8, or x16 PCI Express expansion slot.


Features
● 48-Ch. Digital Input and 32-Ch. Digital Output
● PCI Express x1 compliant
● Board ID
● Keep digital outputs status after warm reboot
● Readable digital output signals

Digital I/O Interface
Surge protection: 10KV
I/O isolation voltage: 3750Vrms
Input impedance: 5.6KΩ0.5W
Input logic: Logic 0: 0V to 1.5V ;
Logic 1: 5V to 24V
Input types: NPN/ PNP
Output types: NPN open collector darlington transistors
Switch capacity: Each output Ch. is 350mA at 24VDC
Response time: On to Off, about 50µs ;
Off to On, about 10µs
I/O pin type: Optically isolated with 3750Vrms on all SCSI 100 pin

General
Specifications: 1-lane 2.5 Gb/s PCI Express
Power consumption: 3.3VDC at 430mA, 12VDC at 55mA typical
Working temperature: 0 to 60℃

Parameter Name	Parameter Value
Signal type	digital
Bus	SCSI
Bus standard	PCI Express
Applications	automation
Number of inputs/outputs	32 digital outputs multi-channel
Other characteristics	high-density
