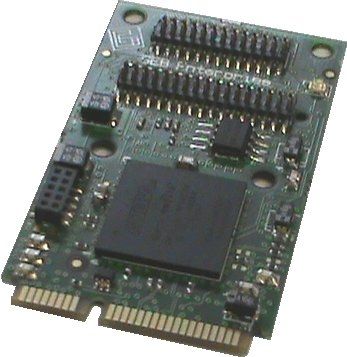

The GEB High Performance PCIe System On Card (Sopc-Card) board makeS easy to add in Your SBC or MINI-ITX a powerfull I/O capability. The PCIe design can be supported by basic PCI express fpga systems that can include SGDMA. PCIe Device drivers are available for major O.S. The drivers make easy to access to I/O registers, memories, PCIe Interrupt and PCIe Dma. For specifications, It has Two I/O connectors, 34+26 pins, dual rows, 50 mills header connectors (Samtech FTS series). It also includes a boot device with ISP (In System Programming) using Altera USB Blaster. It also comes with a power on monitor and reset circuitry as well as 53 user digital I/O channels, 3.3V LVTTL compliant, each one having independent sense, drive, bi-directional, and tri-state capabilities.

Parameter Name	Parameter Value
Signal type	digital
Bus	TTL
Bus standard	PCI Express
