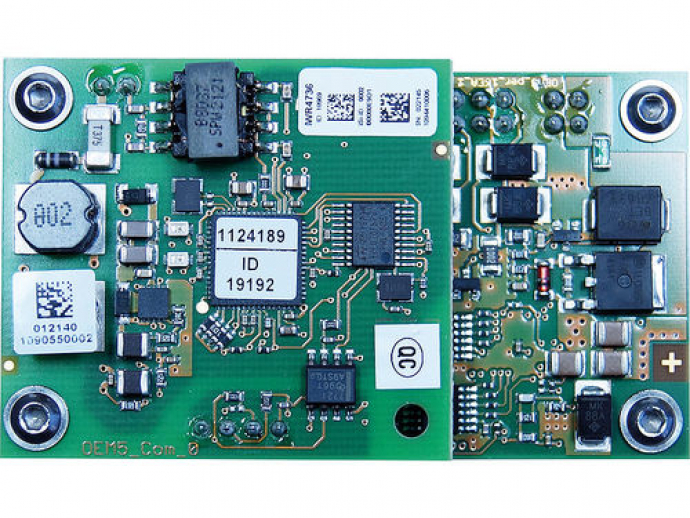

ASi-5 PCB Module, 70 mm x 40 mm, up to 16 digital inputs, up to 16 digital outputs, input voltage/sensor supply out of 24 VDC ext., output voltage/actuator supply out of AUX, max. 350 mA per output, periphery connection via wiring pins, straight, LED, ASi connection via wiring pins, straight, 1 ASi-5 address
Output voltage (actuator supply): outputs are supplied by ASi or by AUX (auxiliary 24 V power). If supplied by ASi, outputs shall not be connected to earth or to external potential.
Input voltage (sensor supply): inputs are supplied by ASi or by AUX (auxiliary 24 V power). If supplied by ASi, inputs shall not be connected to earth or to external potential.
Type - circuit board 70 mm x 40 mm, ASi-5
Circuit board dimensions - 70 mm x 40 mm
Inputs digital - up to 16, depending on configuration
Outputs digital - up to 16 x electronic, depending on configuration
PCB connection - wiring pins, straight
Coating - no
LED status display - yes
Input voltage (sensor supply) - extern 24VDC
Output voltage (actuator supply) - out of AUX
ASi connection - wiring pin, straight
ASi address - 1 ASi-5 address

Parameter Name	Parameter Value
Signal type	digital
Bus	ASi
Applications	voltage
Number of inputs/outputs	16 digital inputs 16 digital outputs
Mounting	PCB
