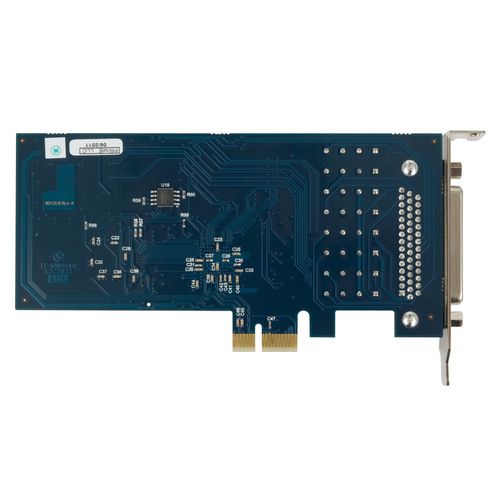

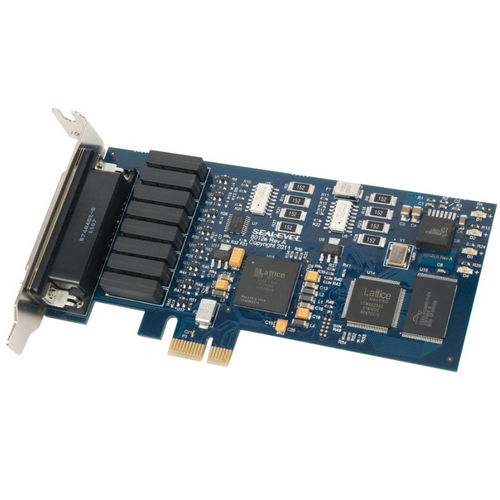

Digital I/O card 8012e

Digital I/O card 8012e

Digital I/O card 8012e

About


The 8012e Low Profile PCI Express digital interface provides eight optically isolated inputs and eight Reed relay outputs (SPST). The isolated inputs are non-polarized and rated for 3-30 VDC. Optical isolation protects the PC and other sensitive equipment from the voltage spikes and ground loop currents that are common to industrial environments. The Reed relays provide high quality, long-life, dry contact switch closures suitable for low-current applications. The relays are normally open and close when energized. The board is PCI Express X1 compliant and is compatible with any PCI Express slot.



PARAMETERS

Parameter Name Parameter Value
Signal type
digital
Bus standard
PCI Express
