Metering control unit: Connect and control your metering components

The MR40 is a control unit developed by DOPAG for the control of complex metering processes. It can be easily integrated into a system with a metering valve or into a 1K metering units with dispensing valves. The control unit enables communication between individual system components and coordinates their operation. Additionally, the featured software ware allows users to store numerous metering programmes and to recall and run them later. The control unit is equipped with connection ports for various material supply systems and is compatible with monitoring devices such as the gear flow meter or the light barrier. It can be used either as system control or as an interface between

Features
- Power supply 230 VAC 50 / 60 Hz
- 7“ Touch screen control panel
- USB interface for programme updates
- Indicator light with buzzer for error messages

Options
- Profi bus, Profi net or Ethernet IP module
- Different connection and heating cables
- Screen protection foil

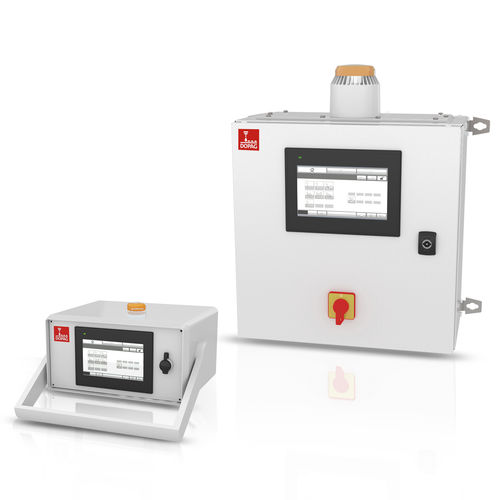

Housing
- Plastic benchtop housing, 370 x 330 x 200 mm with positioning frame
- Sheet metal wall housing 400 x 400 x 210 mm, with fixing brackets

For more detailed information please visit our website or contact us. We are happy to help you.

Parameter Name	Parameter Value
Other characteristics	digital
