About

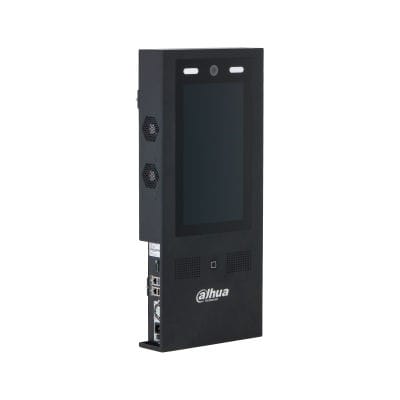

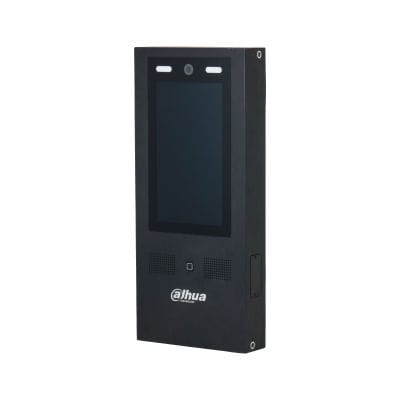

EEC300
> Supports separate installation and removal. One control module can be connected to 4 data collection modules (32 MPTs)
> Unlock the dock by face, fingerprint and password
> Multiple dock unlock methods: Unlocking single dock with software, and unlocking all docks at the same time with software or physical key (in a particular case)
> With built-in lithium battery, when fully charged,you can unlock all docks at least once after the control module is powered off for 10 consecutive days
> Charges and collects data on body cameras and MPTs, and uploads collected data
> Docks in the first-row can be configured to download data with higher speed than others when the system contains more than one data collection module
> Supports up to 6 HDDs of 10 TB, and Raid 0/1/5/10

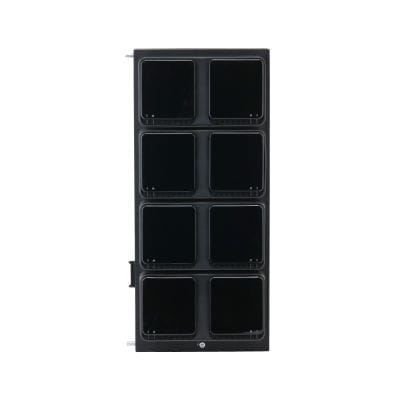

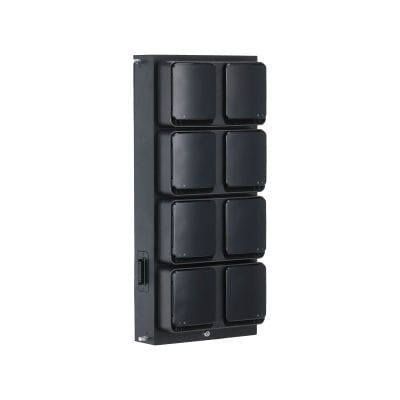

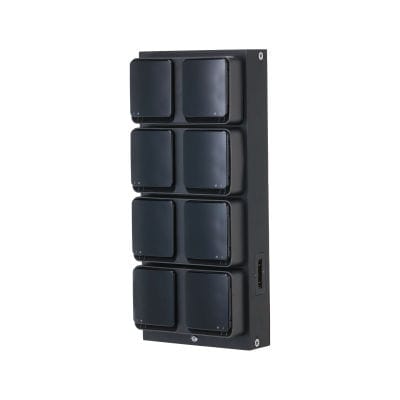

EEC300D8-N1
> Each EEC300D8-N1 contains 8 docks which can connect body camera MPT210 and MPT220.
> Electronic lock design for each dock which can be unlocked only by authorized user.
> Mechanical lock at the bottom which can be used to unlock docks.
> Docks in the first row can be configured to have faster download speed than others when EEC300 connect more than one EEC300D8-N1.
> Total bandwidth up to 128MB/s for data collection.
> Two LED indicators on each dock which used to show the charging status and data collection status.
> EEC300D8-N1 must connect to a Control Module EEC300, can't work separately
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
digital
|
| Other characteristics |
|
