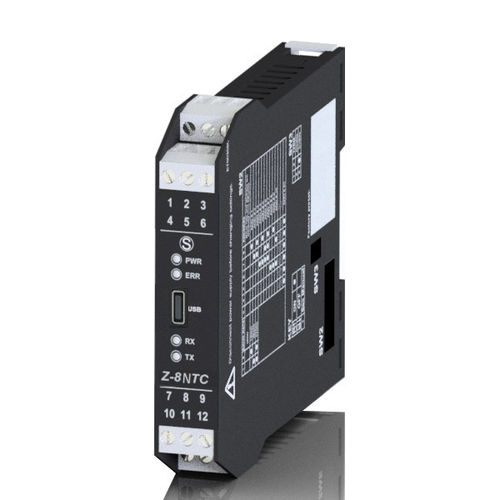

The Z-8NTC is a digital converter with eight measurement channels for resistors, NTC and PTC. The module is characterised by an overall three-point isolation of up to 1.500 Vac (measurement channels // Power supply // serial communication).

Power supply: - 10..40 Vdc; 19..28 Vac (50-60 Hz) bus powered
Input channels: - CH-8 NTC/PTC thermoresistance with user-defined curve
Insulation: - 1,5 kVac @ 3 way
Resolution: - 16 bit
Accuracy: - 0,5%
Operating temperature: - -20..+70°C
Communication: - RS485 2 wire, ModBUS RTU slave protocol
Connection: - microUSB on front panel
Programming: - Via software EASY Setup or via DIP-switch
Mounting: - DIN rail 46277, 35 mm
Dimension WxHxD: - 17,5x100x112 mm

Parameter Name	Parameter Value
Type	digital
Bus	serial, Modbus RTU
Other characteristics	DIN rail
