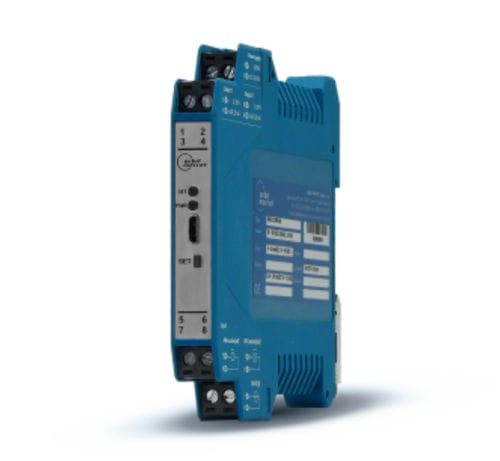

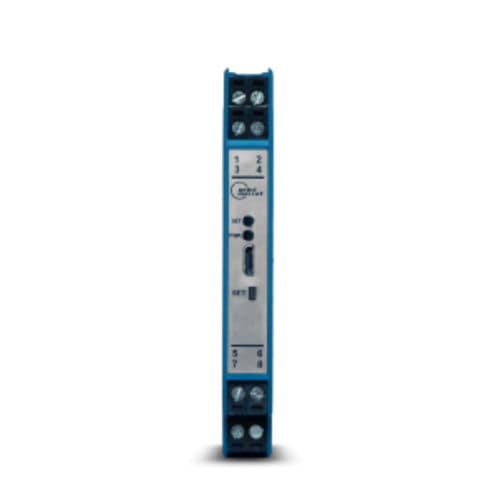

The OMX 200 model series are digital DIN rail mounted signal converters housed in an enclosure only 12.5 mm wide.
The OMX 212PM type is a simple single-channel isolator/splitter with a convenient setting of the input and output ranges either using a DIP switch on the side of the housing or the free OM Link SW from a PC.
You can also use this converter as a splitter into 2 analogue outputs.
This device is based on a microprocessor with a 24-bit ∆∑ A/D converter, which guarantees high accuracy and excellent stability.

Input: 0…2/5/10 V
0…5/20 mA, 4…20 mA, passive/active
2x Analogue outputs, passive/active
Quick configuration by DIP switch
PC configurable via USB port
Galvanic isolation 2.5 kVAC
Simple instalation to DIN rail
Power supply 10…30 VDC, 24 VAC

Parameter Name	Parameter Value
Type	signal digital splitter
Bus	2 analog outputs, 4-20 mA, 0-10 V
Other characteristics	DIN rail mounted USB galvanic 4-20 mA 24-bit
