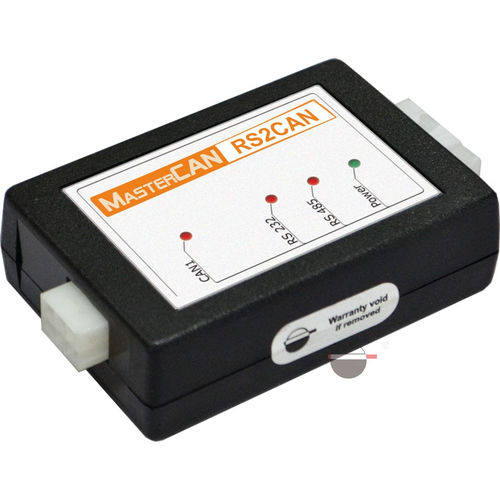

MasterCAN RS2CAN are used for data integration from RS-485 interface (Modbus RTU) into CAN (SAE j1939+S6) interface.

Particular features of the data converters:
• configuration of up to 100 slots of input/output data (selection from 10 800+ Parameters of S6 Database);
• work with CAN interface in the following modes — active (“request-response”) and secret* (“screening” the bus);
• adjustable baudrate via CAN and RS-485 interfaces;
• simple and secure connection to wires of CAN-bus* with CANCrocodile / FMSCrocodile contactless readers;
• compliance with Units, Database and cabling system S6 Technology;
• implementation based on IoT Burger Technology is the reception of ready data for the Telematics system without using any additional devices;
• simple mounting, the full set of mounting elements in the mounting set;
• power supply from the Vehicle onboard circuit, no additional modules required;
• protection from short circuit polarity reversal of the power supply wires;
• high-quality technical support and documentation;
• conformity with European and national automotive standards.

Parameter Name	Parameter Value
Type	digital
Bus	RS-485, CAN
