Measuring range 0...25 / 30 / 40 / 50 / 60 / 70 / 80 / 90 / 100 mbar
3-digit digital display of differential pressure
Analog output 0(4)-20 mA
2 relay outputs (ΔP-alarm, ΔP-cleaning)
Adjustments: lower und upper switch-point,ΔP-alarm-threshold
Main supply 230 V AC, optional 115 V AC
Versions:
- PCB board, 107 x 107 x 42 mm (w x h x d)

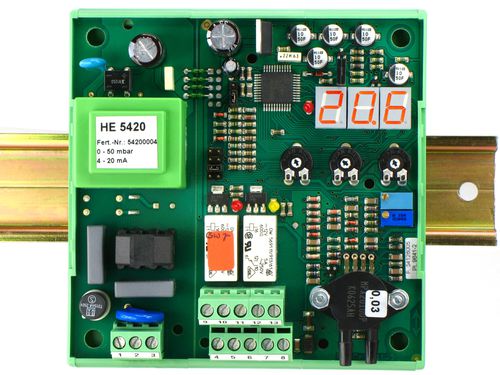

- DIN-rail-mounting, 111 x 111 x 55 mm
- plastic housing, 150 x 200 x 101 mm
Options: customized pressure measuring ranges

The ΔP-controller HE 5420 is used for differential measure- and control functions in air pollution control systems. The controller enables a ΔP-dependend cleaning through activation of a lower and an upper switch-point and an alarm-threshold for supervising the maximal differential pressure (ΔP-alarm).
The actual differential pressure or the switching points are displayed with an 3-digit digital seven segment display.

Parameter Name	Parameter Value
Other characteristics	differential digital
