DESCRIPTION
Advanced OHV, air cooled, 4 stroke engine, continuous power supply
Portable, compact design
Low oil consumption, low noise, displacement environment
Easy start and assemble
EU II CE certificated


PARAMETERS

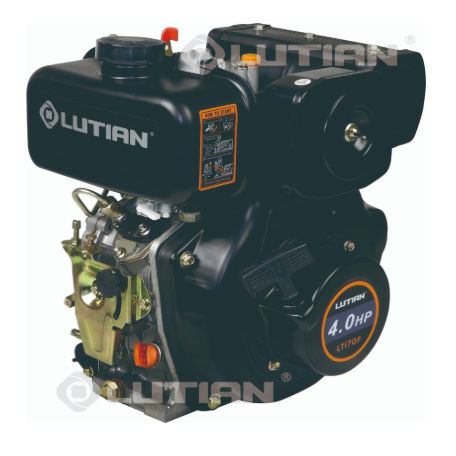

Model LT170FD
Engine Type Single cylinder, 4 stroke, Air-cooled diesel engine
Combustion System Direct injection
Bore x Stroke (mm) 70x55
Displacement (cc) 211
Engine Speed (rpm) 3000丨3600
Max. Output (HP) 3.8丨4.2
Continuous Output (HP) 3.4丨3.8
Power Take Off Crankshaft or camshaft (camshaft PTO rmp is 1/2)
Starting System Recoil or Electric (optional)
Fuel Tank Capacity (L) 2.5
Lube Oil Capacity (L) 0.75
Dimension (LxWxH)(mm) 460x360x460
Net Weight (Recoil)(kg) 27
Net Weight (Electric)(kg) 32
Fuel Type 0#, -10#, -20#
Lube Oil Type CD Grade or SAE 10W-30, SAE 15W-40
Air Cleaner Oil bath air cleaner

Parameter Name	Parameter Value
Type	diesel
Number of cylinders	single-cylinder
Technology	direct injection
Product applications	for generator sets
Other characteristics	4-stroke compact air-cooled
Rotational speed (rpm)	3000 - 3000
