About
Exceptional durability up to 350,000 km
Description

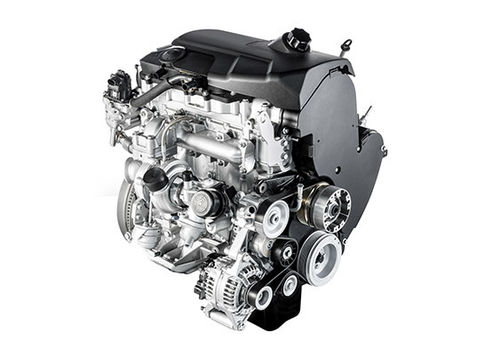

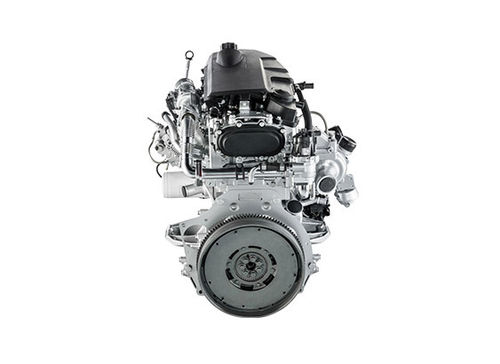

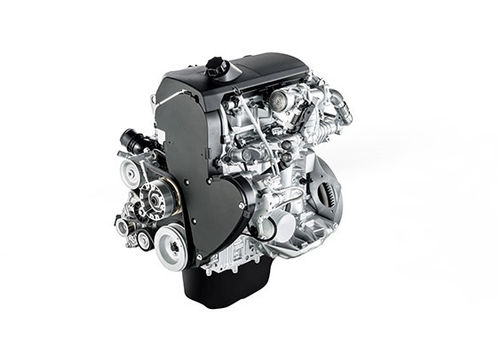

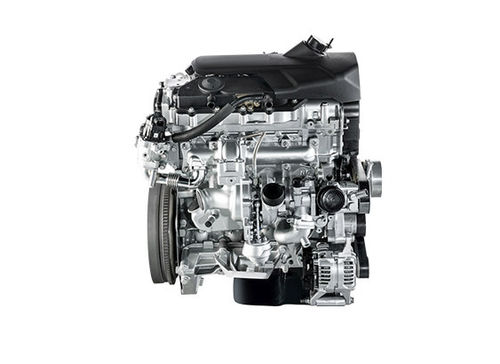

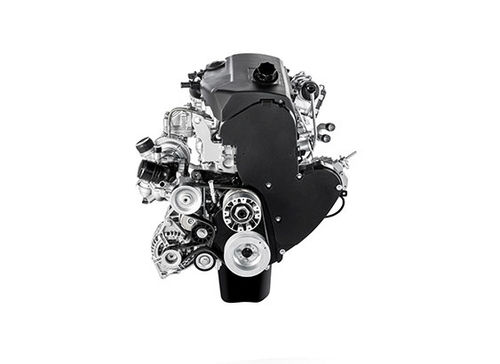

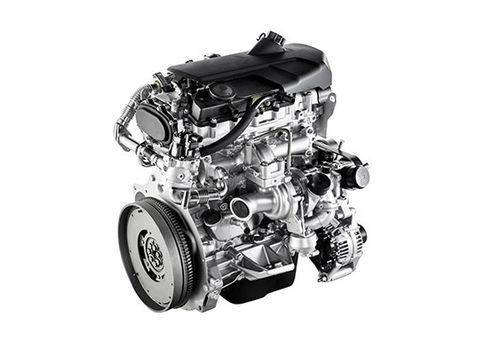

The F1A has been specifically designed for Light Commercial Vehicles, and is the result of more than 35 years of experience in the field. We are currently the European leader with more than 300,000 units per year produced. The engines in this range guarantee optimum efficiency and minimum oil and fuel consumption, combined with long service intervals.
Exceptional load response and extraordinarily efficient power and torque output are achieved with advanced air handling systems such as the electronically controlled variable geometry turbo compressors.
All engine features have been developed to guarantee maximum reliability, durability and serviceability. F1A engines feature dual mass flywheel, hydraulic tappets with roller finger followers, multiple fuel injection, suspended oil pan, bed-plate in addition to engine block.
All F1A / engines are available for both transversal and longitudinal installation. F1A can be customized on demand (options include radiator, air filter, muffler and fittings for air compressor and air conditioning installation).
F1 series meets Euro VI Step E / Euro 6d Final certification by 2021 adopting an externally cooled EGR with by-pass combined with 2 SCRs – underfloor and on-filter - to meet required after treatment efficiency in all driving conditions.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
diesel
|
| Number of cylinders |
4-cylinder
|
| Technology |
|
| Product applications |
for vehicles
|
| Emissions level |
Euro 6
|
| Other characteristics |
|
| Power (W) |
|
| Torque (Nm) |
|
| Rotational speed (rpm) |
1400 - 1400
|
| Displacement |
2.3 l (0.608 gal)
|
| Weight (kg) |
202
|
| Length (mm) |
707 - 707
|
| Width (mm) |
662 - 662
|
| Height |
826 mm (32.5 in)
|
