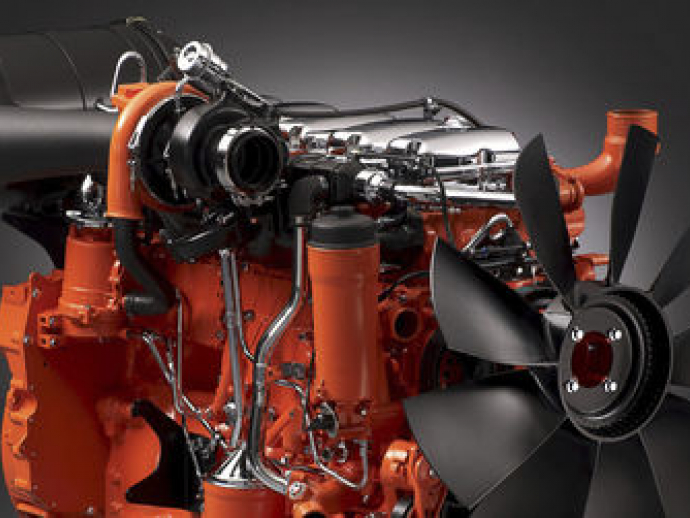

The industrial engines from Scania are based on a robust design with a strength optimized cylinder block containing wet cylinder liners that can easily be exchanged. Individual cylinder heads with 4 valves per cylinder promotes reparability and fuel economy.

The engine is equipped with a Scania developed Engine Management System, EMS, in order to ensure the control of all aspects related to engine performance. The injection system is based on electronically controlled unit injectors that give low exhaust emissions with good fuel economy and a high torque. The engine can be fitted with many accessories such as air leaners, PTOs and flywheels in order to suit a variety of installations.

Standard equipment
• Unit injectors, PDE
• Turbocharger
• Saver ring in cylinder liner
• Fuel filter and extra pre-filter
with water separator
• Oil filter, full flow
• Centrifugal oil cleaner
• Oil cooler, integrated in cylinder block
• Oil filler, in valve cover
• Deep front oil sump
• Oil dipstick, in cylinder block
• Magnetic drain plug for oil draining
• Starter motor, 1-pole 6.0 kW
• Alternator, 1-pole 100 A
• Flywheel, for use with friction clutch
• Silumin flywheel housing, SAE 1 flange
• Front mounted engine suspension
• Open crankcase ventilation

Optional equipment
• Cooling package
• Puller and pusher fans
• Fan ring with sealing
• Hydraulic pump
• Air compressor
• AC compressor
• Side-mounted PTO
• Front-mounted PTO
• Exhaust connections
• Engine heater
• Flywheels SAE11.5”, SAE14”, DANA15/16”,
DANA17” flexplate, ZF WG260
• Stiff rubber engine suspension
• Air cleaner
• Closed crankcase ventilation
• Studs in flywheel housing

Parameter Name	Parameter Value
Type	diesel
Number of cylinders	5-cylinder
Technology	turbocharged electronically carbureted in-line
Product applications	for the construction industry agriculture
Cooling system	air cooling
Emissions level	Stage II, Stage I
Other characteristics	4-stroke oil-cooled
Power (W)	195000 - 294000
Torque (Nm)	830 - 830 919 - 919
Rotational speed (rpm)	1200 - 1200
Displacement	9.3 l (2.457 gal)
Weight (kg)	950
Length (mm)	1242 - 1242
