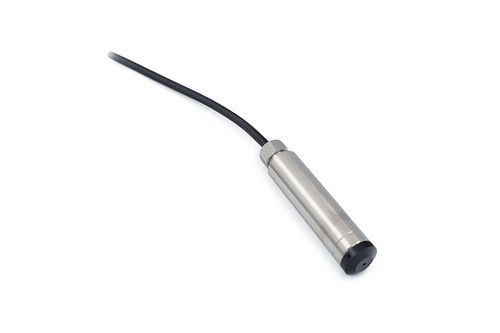

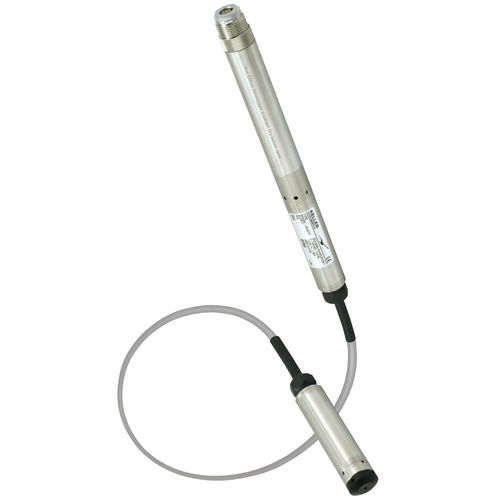

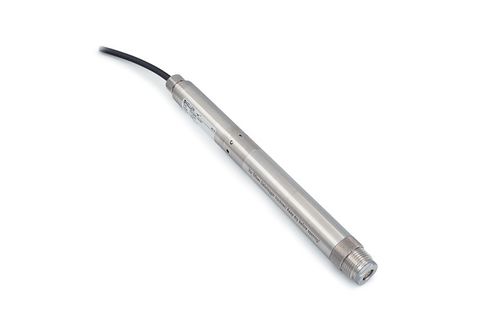

The DCX-22AA data loggers compensate for changes in air pressure by means of a separate, water-tight absolute pressure sensor with a stainless steel separating diaphragm. Unlike gauge pressure systems with a capillary tube, this system is completely resistant to moisture and can therefore be immersed. Thanks to their long-life battery, they can keep measuring the water level, water pressure and temperature for years (up to 10 years at a rate of one measurement per hour). The logger can be configured using the supplied software (measurement interval, incident management, delayed measurement start etc.) and data that has been read can be displayed in a graph or chart, corrected using air pressure values, converted into fill levels or other units, and exported.

Parameter Name	Parameter Value
Measured quantity	temperature, barometric pressure, water level, depth
Connector type	RS-485
Display	without display
Other characteristics	with connector rugged digital submersible self-contained
