Weight: from 25 to 32 Kg.
Power supply: 220V single phase.
Installed power: from 1,2 to 1,5 KW.
IP class: IP55 – Optional IP65.
Temperature: 0 ÷ 45 °C.
Humidity: max 95%.
Position repeatability: 0.1 mm.
Speed: up to 120 cycles/minute.
Degrees of freedom: 3+2 (wrist + tilt).

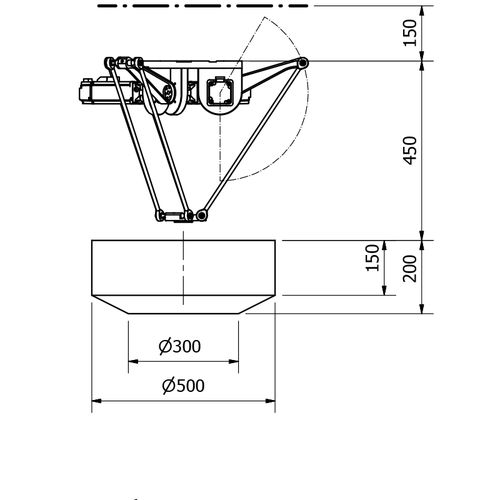

Max working range: 500 mm.
Max payload: 2 kg.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
delta
|
| Number of axes |
3-axis
|
| Payload (kg) |
2 - 2
|
| Reach (mm) |
500 - 500
|
