Breathtaking speed

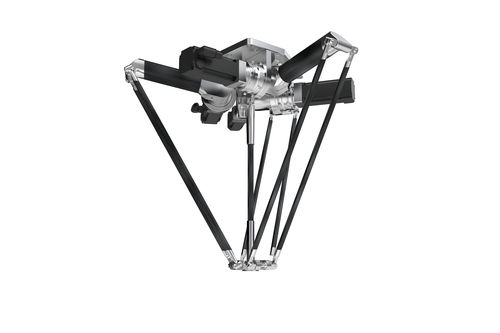

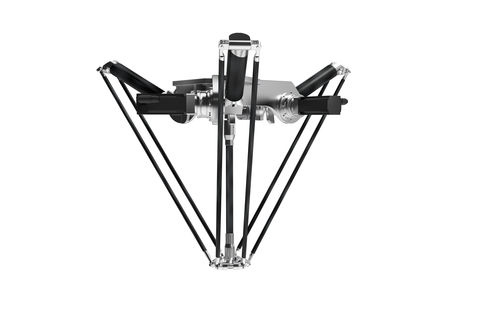

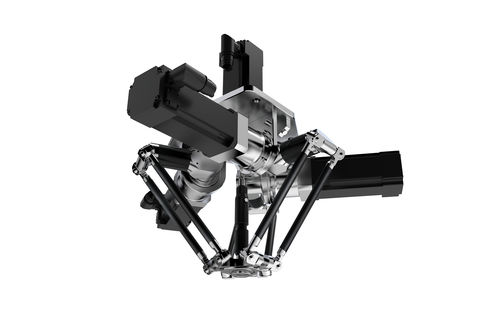

The DR series delta robots, with two to five axes, are designed for high-speed assembly and handling – especially for automated applications in the packaging and electronics industries. In these applications, they offer high speed as well as precision. With their own preconfigured controller, the delta robots can immediately be put into operation and integrated – without any in-depth knowledge of programming.

Benefits
• - Extremely large variety of types
• - Ideal for high-speed assembly and handling
• - Precise positioning
• - Easy integration
• - Preconfigured control
• - Intuitive programming

Technical Features
• - Nominal loads from 0.5 to 50kg
• - Working ranges from 200 to 2,000mm
• - Specially supported arm joints
• - Up to 200 ISO cycles per minute
• - All control components can be integrated into the system control
• - Web based user interface
• - Very low maintenance

Parameter Name	Parameter Value
Type	delta
Number of axes	4-axis
Function	handling for assembly packaging
Application domain	for the electronics industry
Other characteristics	high-speed high-precision
Reach (mm)	200 - 2000
