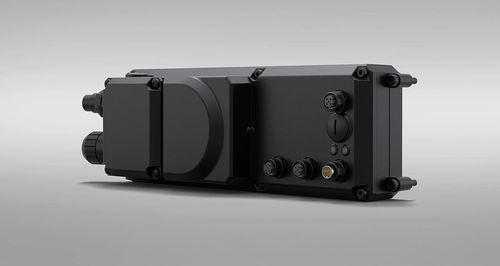

The decentralized power supply with integrated motion controller

Robust and space-saving
The iSA decentralised feed simply runs directly into the machine – entirely without a control cabinet. In harsh environments, they are protected by their dustproof and water-jet-protected IP65 housing, as well as their shock and vibration resistance. Thanks to its wide voltage range, the iSA is tolerant of the applied input voltage.

Motion control and energy recovery are integrated in the lightweight aluminium housing. A brake chopper with integrated brake resistor converts regenerative energy into heat.

The regenerative power can be increased by means of an additional externally connected brake resistor. For highly dynamic movements, an external additional capacitor can stabilise the DC bus voltage.

Cost-saving
The decentralised feed with integrated motion controller relieves the higher-level controller and simplifies the fieldbus architecture. The CODESYS V3 programming platform is integrated in the iSA. This enables access to the AMKmotion function blocks, enabling efficient programming of movement sequences. The deterministic real-time behaviour on the part of RTLinux ensures stable processes.

Fulfils several purposes
Due to the wide-ranging functionality of the iSA, the user does not need any further modules. In this way, the 24V/3A power supply unit supplies energy to all connected components, such as ihXT inverter-integrated servo motors and other decentralised drives. It can also act as a gateway to higher-level control systems. The gateway can be flexibly connected to all common fieldbuses as required.

Parameter Name	Parameter Value
AC/DC	three-phase DC
Type	synchronous
Output signal	CAN, EtherCAT, ProfiNet, Ethernet/IP
Voltage (V)	24 - 24
Other characteristics	decentralized
Intensity (A)	3 - 3
Power (W)	5000 - 5000
