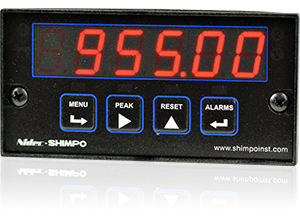

The Series PM-DC 1/8 DIN Process Meters, with Jumper-Selectable DC Signal Input Ranges
are designed for process automation applications. The PM-DC Series is a versatile family of controls with a multitude of input and output selections. The PM’s are fully scalable for customizing to the exact application requirements allowing the display to read in desired engineering units coinciding to common process signal inputs. Current input models can be set to one of 4 input ranges from ±2.0000 mA with 0.1 μA resolution to ±5.000 A with 1 mA resolution. The voltage input models may be set to one of 6 input ranges from ±200.00 mV with 10 μV resolution to ±600.0 V with 0.1 V resolution. Universal AC or DC power options enable flexibility with usage in various power situations. The PM-DC’s offer optional 8 A contact or 120 mA solid state relay outputs, plus an analog process signal output with 4 user-selectable current or voltage ranges. To provide a higher level of communication and integration into a system’s network, several communication protocols such as RS-232, RS-485 and even USB options are available. Units come standard with an isolated excitation output to power transducers, eliminating need for additional power supply.
Units are ideal for indicating current or voltage signals from process sensors, transmitters and transducers in applications involving temperature, pressure, level, flow rate, speed, humidity, level, distance and a myriad more. The PM-DC’s are also commonly used to detect DC power output from solar cells, power supplies, batteries as well as current consumption of DC powered motors and similar devices.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured value |
DC voltage
|
| Display |
5-digit
|
| Type |
panel-mount
|
| Other characteristics |
|
