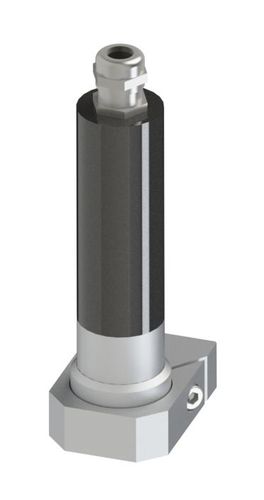

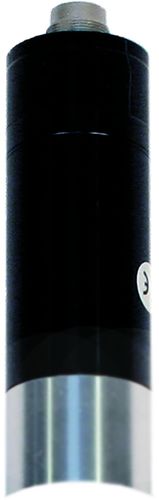

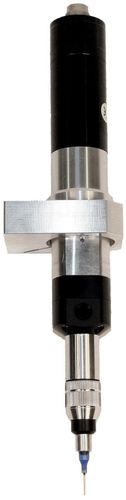

The ViscoPro-Cm is a brushless servo motor for the drive of the ViscoTec dispenser 3RD4-EC, including a high intelligent drive concept. In combination with the 3RD4-EC dispenser a perfect alternative to valves.

Your advantages:
- weight with ViscoTec dispenser < 1.2 kg
- adjustable dosing volume or high / low control
- adjustable speed, proportional to dosing flow
- volumetric dosing
- automatic snuff-back to avoid dripping
- convenient integration in new facilities and existing systems
- simple installable alternative for dosing valves
- parameter setting by PC with RS 232 interface
- only one signal required (start / stop)
- optional signal exchange

Application:
- dosing of viscous, shear sensitive and abrasive products, as silicone, grease, colours, sealants, adhesives, oils
- bead application, adjusted to tracking speed
- dot dosing with highest volumetric accuracy
- uptitration into a production flow
- interconnection to robot or axis system possible

Technical Data:
- electrical data (power supply): 310 VA, 230 V, 50 Hz
- max. dosing speed: 125 rpm*
- suitable dispensers: 3RD4-EC
- dosing accuracy: +/- 1 %*
*(depends on material)

Parameter Name	Parameter Value
AC/DC	DC
Type	brushless
Configuration	permanent magnet
Applications	for dispensers
Rotational speed (rpm)	125 - 125
