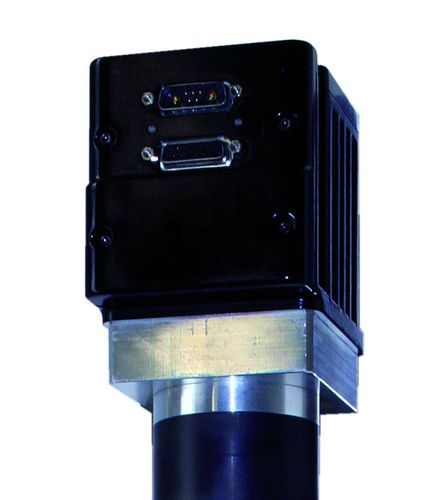

The ViscoPro-Cg is a brushless servo motor for the drive of the ViscoTec dispenser series RD-EC: 3VMP15, 3VMP18 and 3VMP22, including a high intelligent drive concept. In combination with one of those dispensers a perfect alternative to valves.

Your advantages:
- weight with ViscoTec dispenser < 15 kg
- adjustable dosing volume or high / low control
- adjustable speed, proportional to dosing flow
- volumetric dosing
- automatic snuff-back to avoid dripping
- convenient integration in new or existing systems
- simple installable alternative for dosing valves
- parameter setting by PC with RS 232 interface
- only one signal required (start / stop), therefore easy to integrate
- optional signal exchange

Application:
- dosing of viscous to highly viscous, shear-sensitive and abrasive products such as: silicones, metal filled pastes (Cu and Ni solder pastes), Al and Ag pastes), adhesives and colours
- bead application, adjusted to tracking speed
- dot dosing with highest volumetric accuracy
- uptitration into a production flow
- interconnection to robot or axis system possible

Technical Data:
- electrical data (power supply): 310 VA, 230 V, 50 Hz
- max. dosing speed: 125 rpm*
- suitable dispensers: 3VMP15, 3VMP18, 3VMP22
*(depends on material)

Parameter Name	Parameter Value
AC/DC	DC
Type	brushless
Configuration	permanent magnet
Applications	for dispensers
Rotational speed (rpm)	125 - 125
