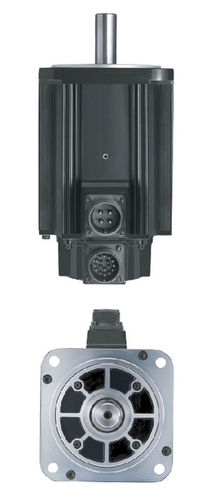

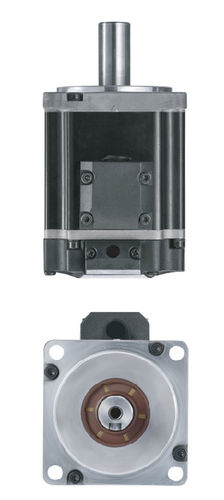

HIGH PERFORMANCE SERVO MOTOR Trio's new MX Sériés High-Performance
servo motor is shorter than the traditional motor, which effectively reduces the difficulty of installation and layout, including the solution of absolute or incrémental encoder to help the equipment achieve higher accuracy and performance.
MXL sériés servo motors include absolute or incrémental encoder solutions, which are suitable for applications with a maximum speed of 6000 rpm. Products include band brake options.
The low inertia design brings very fast response time. In addition, MXL motor has the performance of small size and high torque. With DX servo driver, it is an idéal choice for applications with high dynamic response and fast and accurate positioning.
Trio DX servo drive system can be used in a wide range of applications due to its high performance, available power range and compact size.
FUNCTIONAL FEATURES
I - Support 20bit incrémental encoder and 23bit absolute encoder
I - Independent electromagnetic design
I - IP65 protection grade
I - Standard with oil seal
I - Optional band brake
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
DC
|
| Type |
synchronous
|
| Voltage (V) |
24 - 24
|
| Protection class |
IP65
|
| Configuration |
|
| Other characteristics |
performance
|
| Power (W) |
|
| Rotational speed (rpm) |
3000 - 3000
|
| Operating temperature (°C) |
0 - 40
|
