DC servomotor DSM series

DC servomotor DSM series

DC servomotor DSM series

About

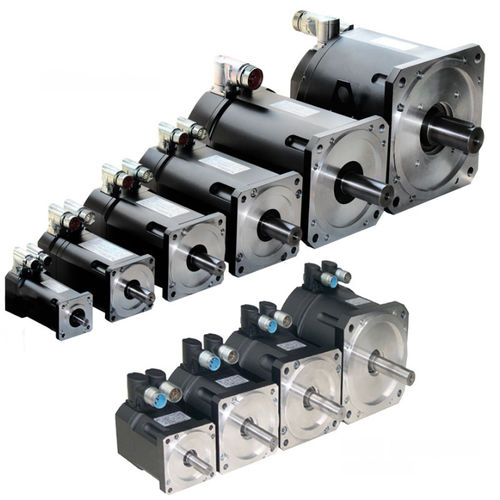

PERMANENT-MAGNET BRUSHLESS AXES SERVOMOTORS, DSM-SERIES
DSM brushless servomotors are designed to offer an advanced solution as a result of an consistent project developed for chip-removal machine tools, where high motion control control bandwidth is needed.

Together with the full-digital control of D.Electron Z-Star2 servodrive system, DSM servomotors fulfill high requirements of dynamic, precision and smoothness.

DSM servomotors reach the lowest level of torque ripple available on the market, and together with their high inertia, allow direct coupling of the motor, overcoming mechanical transmission limits.



Fields of application:

Metal working machine tools (milling-turning)
Robots
Machine tools for wood, glass, marble
Cutting machines, Laser, Plasma, Waterjet, Oxi fuel
Auxiliary axes

Main characteristics:DSM servomotors series

Rare earth elements magnets for high temperature
8 poles
Sinusoidal Back E.M.F
Integrated thermal probe KTY84-130
Orientable connectors
Compact sizes
Low torque ripple
High RPM



PARAMETERS

Parameter Name Parameter Value
AC/DC
DC
Type
brushless
Configuration
  • permanent magnet
  • compact
Torque (Nm)
0.7 - 230
