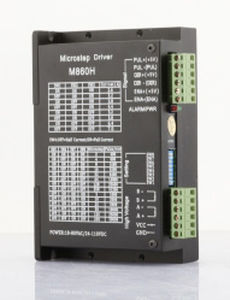

M860L DC18-50V/2.6-7.2A Stepper Motor Driver
Product description: stepper motor driver,servo driver,driver integrated servo motor,automation products,setpper motor controller,3-axis stepper motor controller
Product Abstract:
The M860 is a great performance microstepping based on pure-sine current control.With those technologies and the self-adjustment function(self-adjust current control) to various motors, the stepper driver keep the driven motors run with low noise,less heating, smoother movement and better performances at higher speed than other drives in the markets.it is adapt to driving 2,3,4 phases hybrid stepper motors.
Product Description
The M860L Stepper Motor Drivers is a excellent performance microstepping based on pure-sine current control.With above technology and the self-adjustment function(self-adjust current control) to various motors, keep the driven motors run with low noise,less heating, smoother movement and better performances at higher speed than other drives in the markets.it is adapt to driving 2,3,4 phases hybrid stepper motors.
M860L Stepper Motor Driver Features
High Efficiency
Excellent high speed performance
DC18-50V
2.6-7.2A
Self-adjustment function
Pure-sine current control
300KHz Max Pulse input frequence
Suitable for TTL and optically isolated input
Auto idle current reduction
16 steps resolutions in decimal binary, max 51,200 steps/rev
Suitable for 2 ,3, 4 phases motors
Support PUL/DIR and CW/CCW modes
Short-voltage protection, over-voltage protection, over-current protection
M860L Stepper Motor Driver Specifications
M860L Stepper Motor Driver Electrical Specifications (Tj : 25oC~77oC)
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
DC
|
| Product applications |
for stepper motors
|
| Intensity (A) |
2 - 8
|
