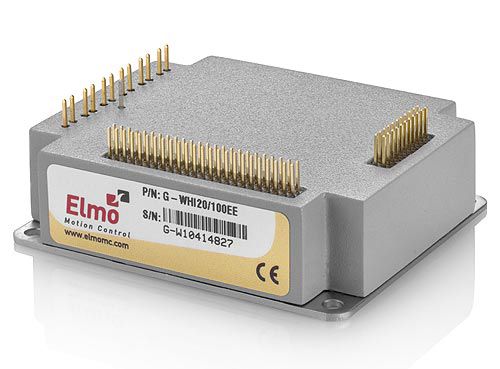

The Gold Whistle is a DC digital servo-drive that requires 80 - 1 600 W. It is a digital servo drive that offers up to 1.6 kW of continuous power or 3.2 kW of peak power. This advanced high density servo drive is powered by a single 12 V 95 V isolated DC power source and a smart control-supply algorithm that enables the drive to operate with only one power supply with no need for an auxiliary power supply for the logic. This drive is characterized to have Gold Line core motion control technology, highest power density, with highly efficient, high bandwidth performance and has a multiple communication options like EtherCAT, CANopen, USB, Ethernet. It also supports a wide variety of feedback sensors and has an advanced filtering and gain scheduling options for enhanced dynamic performance and also has vector control sinusoidal commutation.

Parameter Name	Parameter Value
AC/DC	DC
Output signal	digital
Intensity (A)	1 - 20
Output power	Max.: 1.6 kW (2.17539 hp)Min.: 0.08 kW (0.10877 hp)
