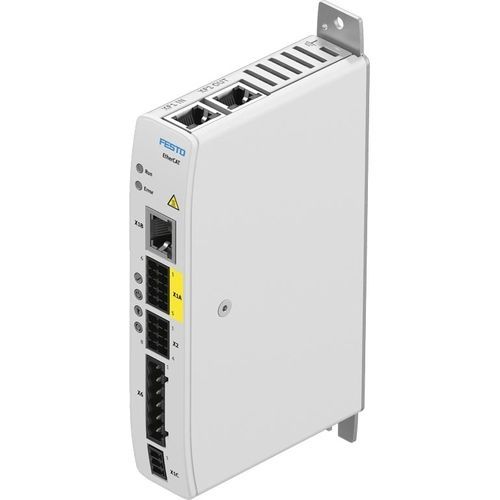

The extremely small servo drive CMMT-ST performs positioning and movement tasks up to 300 W, highly efficiently, dynamically, and precisely, point-to-point or by interpolation. And it can be easily commissioned in no time, via the Festo Automation Suite and the integrated auto-tuning function.

• High efficiency in tasks with low power requirements
• Ideal for positioning tasks and point-to-point and interpolating movement solutions
• 50% more compact than the smallest servo drive CMMT-AS
• 150 W at 24 V DC, 300 W at 48 V DC
• When operating with the existing 24 V DC network in a control cabinet and a continuous output of 150 W, there is no need for an extra fixed power supply unit
• With safety functions
• Optimized for use with stepper motors like the tried-and-tested EMMS-ST

Parameter Name	Parameter Value
AC/DC	DC
Output signal	EtherCAT, ProfiNet, Modbus
Product applications	positioning for stepper motors
Voltage (V)	24 - 48
Other characteristics	compact integrated IP20 low-voltage
Intensity (A)	8 - 8
Power (W)	300 - 300
