APPLICATIONS
* Raster Imaging
* Optical Layout Templates
* Optical Coherence Tomography
* Laser entertainment (light show) displays
* Laser Marking (including XY2-100 support)
UNIQUE ScannerMAX FEATURES
* PC-based Graphical User Interface
* Six user-configurable test / status outputs
* Up to four, instantly-accessible scanner tunings
* Built-in diagnostic and performance analysis tools
* Supports PD, PID, PDF and PDFF servo control laws
BENEFITS
* Compact package size
* Modest power requirements
* Highly configurable and versatile
* Single package handles both X and Y axis
* Ability to add customizations via firmware updates

GENERAL DESCRIPTION

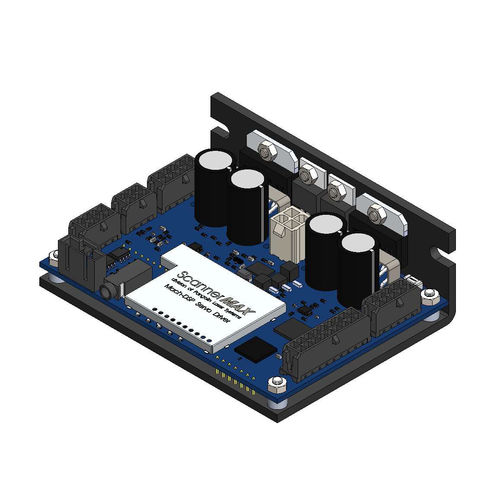

The Mach-DSP servo driver is Pangolin’s latest and most advanced development in galvo control technology.
By taking advantage of high-speed floating-point Digital Signal Processors, 16-bit data converters, direct digital command input, and highly configurable servo algorithms, the Mach-DSP provides full-function, two-axis servo driver electronics in a cost-effective and compact package. Many advanced techniques and user-customizable features are
embodied within the Mach-DSP which, when combined with Pangolin’s ScannerMAX scanners, deliver a level of speed, accuracy and convenience that were unattainable before now.

Parameter Name	Parameter Value
AC/DC	DC
Number of axes	2-axis
Other characteristics	compact
