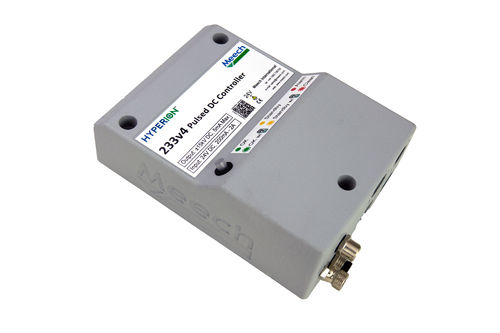

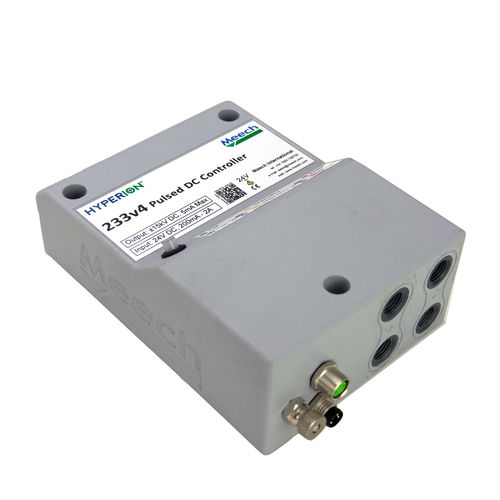

The Hyperion 233v4 Pulsed DC Controller is a compact and powerful 15kV controller, designed with the ability to directly power two Meech pulsed DC ionisers. If additional ionisers are required, these can be connected via splitters. The versatility and flexibility of the 233v4 make it suitable to use in a wide range of industries, with the advantage of a simple installation and controller set-up procedure.

The 233v4 features all of the adjustability and monitoring that you would expect from a Hyperion product. Fully BarMaster compatible, the output voltage, frequency and balance can all be adjusted to suit particularly difficult applications. The adjustable output voltage is particularly useful in very sensitive applications such as those found in cleanroom environments.

A key feature of the 233v4 is Meech’s Ion Current Monitoring technology which allows greater control of the ionisation performance, by monitoring the effectiveness of the ionising output. This is supported with integrated output signals which alert operators of the need to clean the attached ioniser to achieve maximum performance. For example, if performance drops, a flashing red LED will alert the operator to encourage cleaning of the equipment.

Parameter Name	Parameter Value
Current (A)	0 - 625
