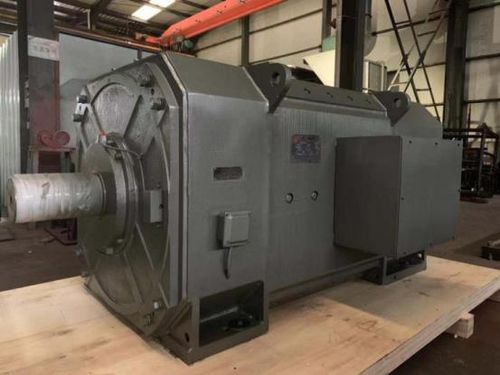

The Z series large DC motor is a new product developed by our company. The new design has the characteristics of large output power, low noise, small vibration, high efficiency, high reliability, and good safety performance.

Rated armature voltage: 660, 750, 850, 950, 1000V
excitation:Other
Axis height:810 to 1000mm
Protection class:IP23, IP44 and IP54
structure type:IM 1001
Cooling type:IC17 / IC37 / IC W37 A86
Stator design:Silicon steel sheet lamination
Standards compliant:IEC, DIN, GB

Brief description
Customer benefits
Large output power, large torque and adjustable speed
· VPI vacuum pressure immersion period F-class insulation system can withstand short-term overload operation
Low losses through high efficiency
· Optimized current circulation system achieves long brush life
· Heater inside the motor
Protective doors on both sides of the commutator
Grounding brushes on the shaft

Typical application
· Cold and hot rolling mills for large metallurgical industries
· Large-scale mixer in rubber and plastic industry
· Coal mill for mining industry
· Hydropower winches
· Large blower

Parameter Name	Parameter Value
AC/DC	DC
Type	brushed
Protection class	IP54 IP44 IP23
Configuration	large
Applications	for hydraulic applications for the mining industry
Other characteristics	variable-torque low-vibration
Power (W)	250000 - 250000 0 - 0
Rotational speed (rpm)	1000 - 1000
