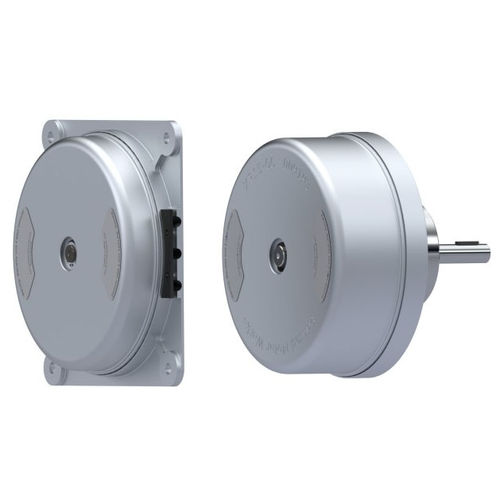

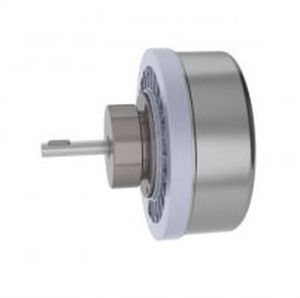

The Printed Motor Works XR15Series is a compact yet very powerful brushless DC motor made for volume applications. The XR15range is an external rotor motor. This motor design delivers high power from a compact package while still using low cost ferrite magnets. The XR15range is available with an integrated high resolution incremental encoder available with customisable counts per revolution and channel options.

Specificbenefits
 Brushless motor with pancake profile
 Integrated encoder option
 No rare earth magnet material
 Labyrinth seal (IP55)
 High efficiency on load
 Designed for volume applications
 Low noiseDesigned for continuous use
 Wide speed range up to 7,500rpm

Applications
Door actuators, conveyor belts, stair lifts, medical centrifuges, industrial pumps, HVAC systems, bomb disposal robots.

Markets
Automatic doors, materials handling, medical, life sciences, industrial automation, aerospace and defence

Parameter Name	Parameter Value
AC/DC	DC
Type	brushless
Protection class	IP55
Configuration	with brake permanent magnet external rotor pancake type compact
Applications	for robotics with built-in encoder for pumps for medical equipment industrial for automatic doors for conveyors
Other characteristics	high-efficiency low-noise
Power (W)	74 - 586
Torque (Nm)	1.23 - 4.16
Rotational speed (rpm)	0 - 7500
