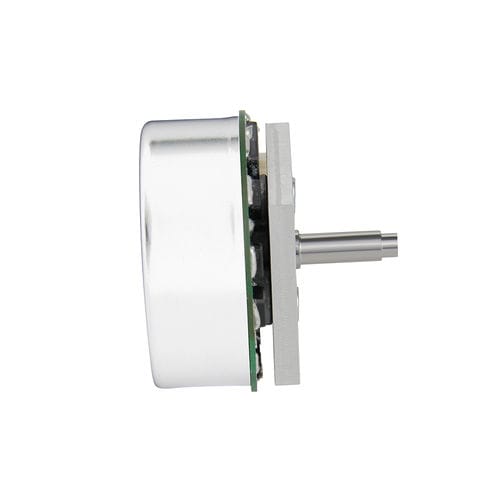

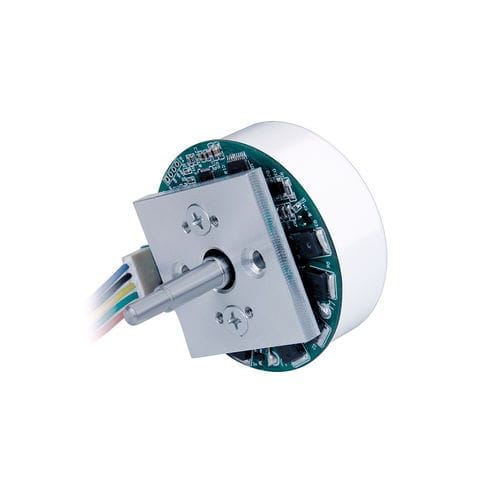

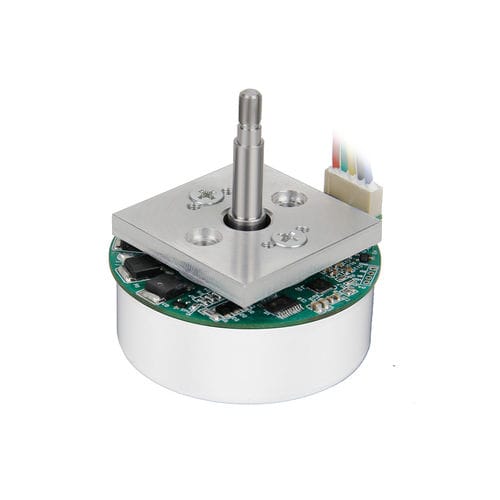

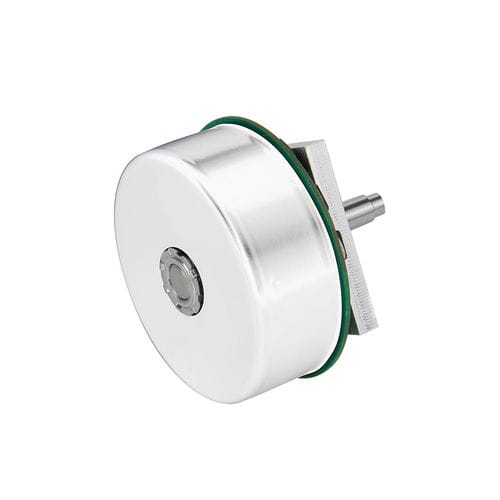

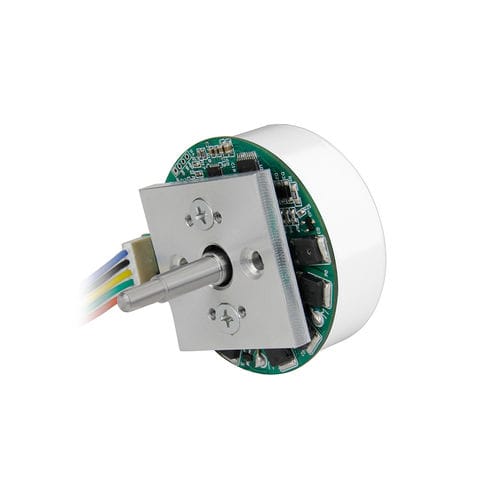

Electric Massager or Fascia Gun Brushless Motor
1.Introduction
The Massager BLDC Motor(24V), designed for a famous fascia gun brand, provides the ideal speed and torque for massaging, with long life, low noise, high torque and other advantages.Power Motor has a mature Engineering customization platform and experienced engineers to provide huge various motor sample data for reference, customed motor solutions for your engineering project quickly.
2. Specification
•Model:PBL48 Series
•Voltage:24 V
•Torque:112 mN.m
•Power:37 W
•Speed:3111 RPM
3.Advantage
•High Torque
•Long Life
•Low Noise
•Customizable
4.Customizable Conbinations: Precision Gearboxs, Driver or Controller,Encoders
Power Motor provides more than 80,000 kinds of Brusheless DC Motor(BLDC) application data for customers to select or reference, and with high-performance driver or controller, a specific reduction ratio precision gearbox( planetary, worm, spur and helical) or the corresponding encoder, rapid integration and design of BLDC Motor Solutions that meet or exceed customer needs. Our BLDC Motors are fully used in the fields of household appliances, automation, medical healthcare, precision instrument and power tools, such as: blender, coffee machine, vacuum cleaner, Robot, etc.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
DC
|
| Type |
brushless
|
| Voltage (V) |
24 - 24
|
| Applications |
for massage equipment
|
| Other characteristics |
multi-speed
|
| Power (W) |
37 - 37
|
| Torque (Nm) |
0.112 - 0.112
|
| Rotational speed (rpm) |
3111 - 3111
|
| Diameter (mm) |
46 - 46
|
