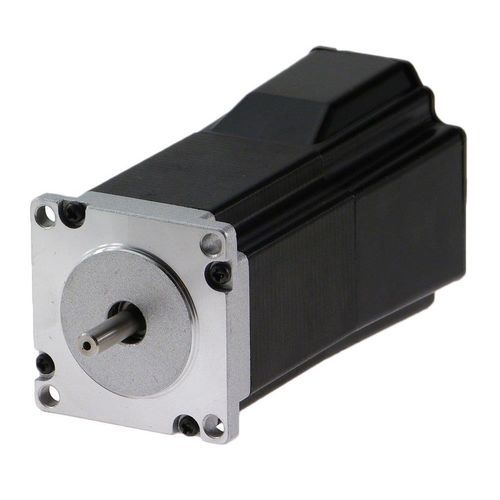

QuickStep, the Integrated Stepper Motors from JVL.

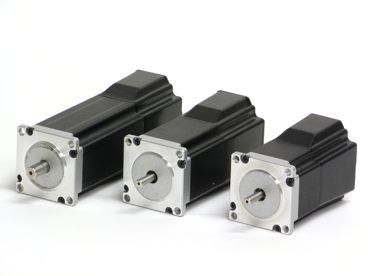

A wealth of possibilities in a series of of the world´s most compact stepper motors with the higest microstepping resolution. 3 sizes are available.

• MIS231 - 1.1Nm
• MIS232 - 1.6Nm
• MIS234 - 2.9Nm

The QuickStep series of Stepper motors with integrated electronics represents a major step forward. All the necessary electronics in a stepper system are integrated in the motor itself.
The stepper motor, encoder and electronics are specially developed by JVL so that together they form a closed unit in which the power driver and controller are mounted inside the motor in a closed section with protection up to IP67.

Note that the driver and controller are also available a separate unit - SMC75.



PARAMETERS

Parameter Name Parameter Value
AC/DC
DC
Type
stepper
Protection class
  • IP65
  • IP67
Configuration
compact
Other characteristics
integrated-drive
Torque (Nm)
  • 1.1 - 1.1
  • 1.6 - 1.6
  • 1.8 - 1.8
  • 2.9 - 2.9
  • 3 - 3
Rotational speed (rpm)
1000 - 1000
