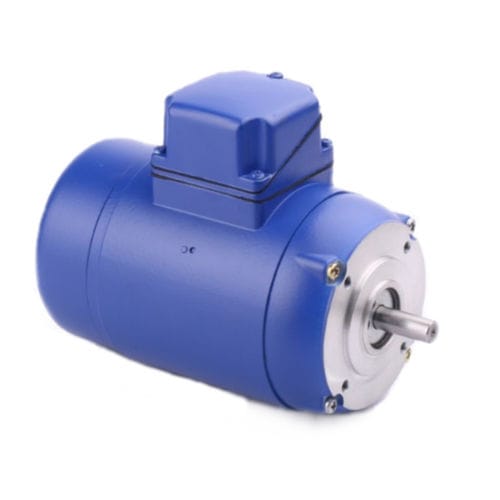

DC motor KG 70

About


The KG series are housed DC-drives with revolving armatures. These can be designed as series (universal motor) or shunt motor. The series motor has a high starting torque, but its speed is heavily load-dependent. The speed of the shunt motor remains nearly constant and is controlled by the armature voltage.The KG series are housed dc-drives with commutators. These can be designed as a series (universal motor) or shunt motor. The series motor has a large starting torque, but the speed depends strongly on the load. The shunt motor is speed stiff. The speed is controlled by the armature voltage.



PARAMETERS

Parameter Name Parameter Value
AC/DC
DC
Type
universal
Voltage (V)
24 - 220
Protection class
IP44
Applications
  • industrial
  • for robotics
  • for medical applications
Other characteristics
high-torque
Power (W)
0 - 56
Torque (Nm)
0 - 0.108
Rotational speed (rpm)
0 - 10000
