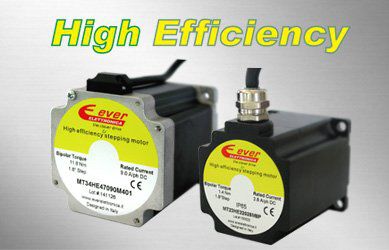

New 2/4 phases stepper motors series with advanced performances.

High Efficiency means up to 40% higher torque and a better torque supply with same mechanical sizes.

Construction more precise and well-finished, high quality components and possible customizations are the best characteristics of this new motors' line, suitable for many different purposes.

● Suitable for many different application fields

● Advanced construction solutions:
√ up to 40% torque increase than standard motors
with same winding and mechanical size
√ motor stator and rotor with optimized teeth air gap
for a better torque supply during rotation
√ up to IP67 protection class
√ high voltage versions and/or with different
insulation classes
√ motors in stock for quick deliveries

● Main motors' characteristics:
√ low vibrations and resonances
√ F class wirings and high reliable magnetic materials
√ excellent dynamic torque
√ long lasting and high reliable bearings
√ customization possibility also for small quantities

Parameter Name	Parameter Value
AC/DC	DC
Type	stepper two-phase stepper
Voltage (V)	100 - 24
Protection class	IP44 IP54 IP55 IP56 IP65
Configuration	with brake with coder NEMA 23 NEMA 17 compact
Applications	solar for medical applications for robotics with built-in encoder for the electronics industry for pumps retrofitting for medical equipment linear actuator packaging machine industrial for electrical apparatuses for machine tools for automatic doors for automatic distributors
Other characteristics	with built-in electronics closed-loop with gearbox with integrated controller high-torque high-power precision high-precision high-efficiency
Torque (Nm)	0.017 - 50
