DC motor ES040A series

DC motor ES040A series

DC motor ES040A series

About

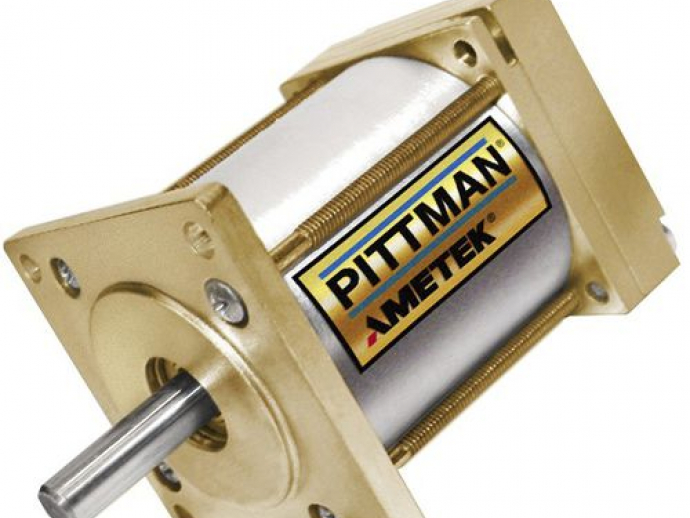

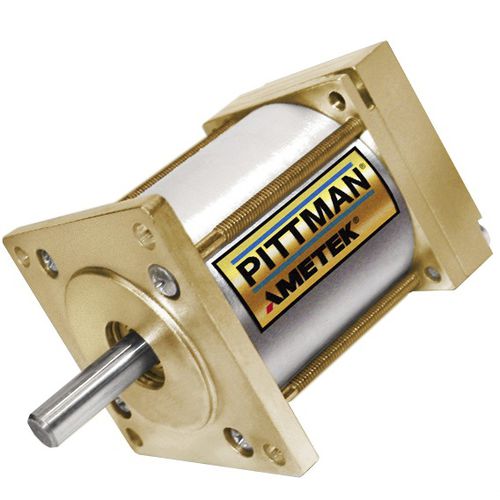

The ES040A series brushless DC motor is a high torque density model brushless motor with a slotless design in a NEMA 17 configuration. It is offered in a 3 motor lengths with continuous torque from 0.085 - 0.134 Nm.

Features:
Speeds up to 8,000 RPM
DC bus voltage up to 120 Vdc
NEMA 17 configuration
Eight standard windings - Special windings available
4 Pole Rare Earth design



PARAMETERS

Parameter Name Parameter Value
AC/DC
DC
Type
brushless
Voltage (V)
110 - 110
Configuration
  • slotless
  • NEMA 17
Number of poles
4-pole
Power (W)
41 - 72
Torque (Nm)
0.085 - 0.134
Rotational speed (rpm)
8000 - 8000
Diameter (mm)
40 - 40
