About

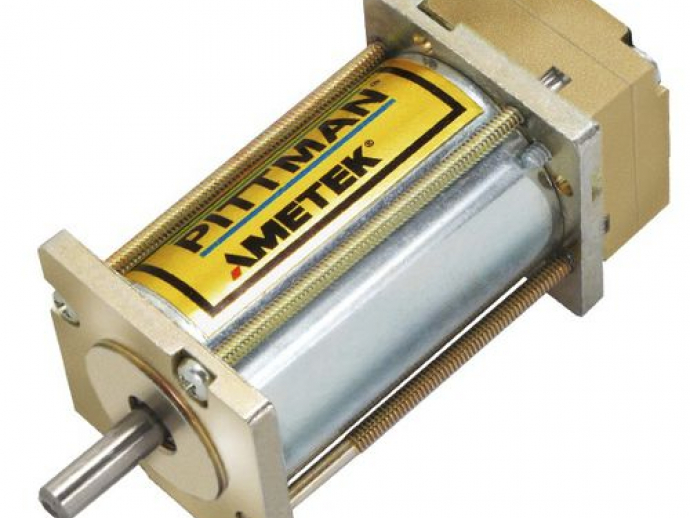

The ES030A series brushless DC motor is a high torque density model brushless motor with a slotless design in a NEMA 14 configuration. It is offered in a 2 motor lenghts with continuous torque from 0.029 - 0.041 Nm.
Features:
Speeds up to 8,000 RPM
DC bus voltage up to 60 Vdc
NEMA 14 configuration
Eight standard windings - Special windings available
4 Pole Rare Earth design
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
DC
|
| Type |
brushless
|
| Voltage (V) |
60 - 60
|
| Number of poles |
4-pole
|
| Power (W) |
11 - 22
|
| Torque (Nm) |
0.029 - 0.041
|
| Rotational speed (rpm) |
8000 - 8000
|
| Diameter (mm) |
30 - 30
|
