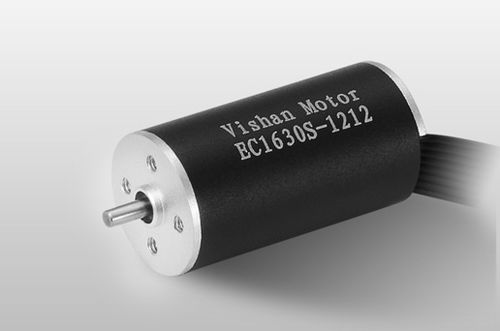

Vishan motor group is always well prepared to delivery our best service via such downsize and optimize brushless slotless DC motor, our Efficient work will assistant you to find the right solution from our products.

Configuration:
• With or without Hall sensor
• Performance: Customized in the continuous operating range
• Ball bearing: Preload
• Flange: Standard frange front&back/customize the frange
• Shaft: Length/Diameter/Cut face/double shaft/hollow shaft
• Leadwire: PVC/Silicon/Teflon/UL No/Dimension/length
• Connector: JST/MOLEX/TE

Parameter Name	Parameter Value
AC/DC	DC
Type	brushless
Voltage (V)	24 - 12
Configuration	aluminum slotless hollow-shaft
Number of poles	single-pole
Applications	for pumps for medical equipment blower for robotics for power tools
Other characteristics	high-efficiency high-torque low-noise high-power
Power (W)	4 - 4
Torque (Nm)	0.0035 - 0.0035 0.0182 - 0.0182 0.0199 - 0.0199 0.0205 - 0.0205
Rotational speed (rpm)	19138 - 35000
Diameter (mm)	16 - 16
Operating temperature (°C)	-30 - 100
